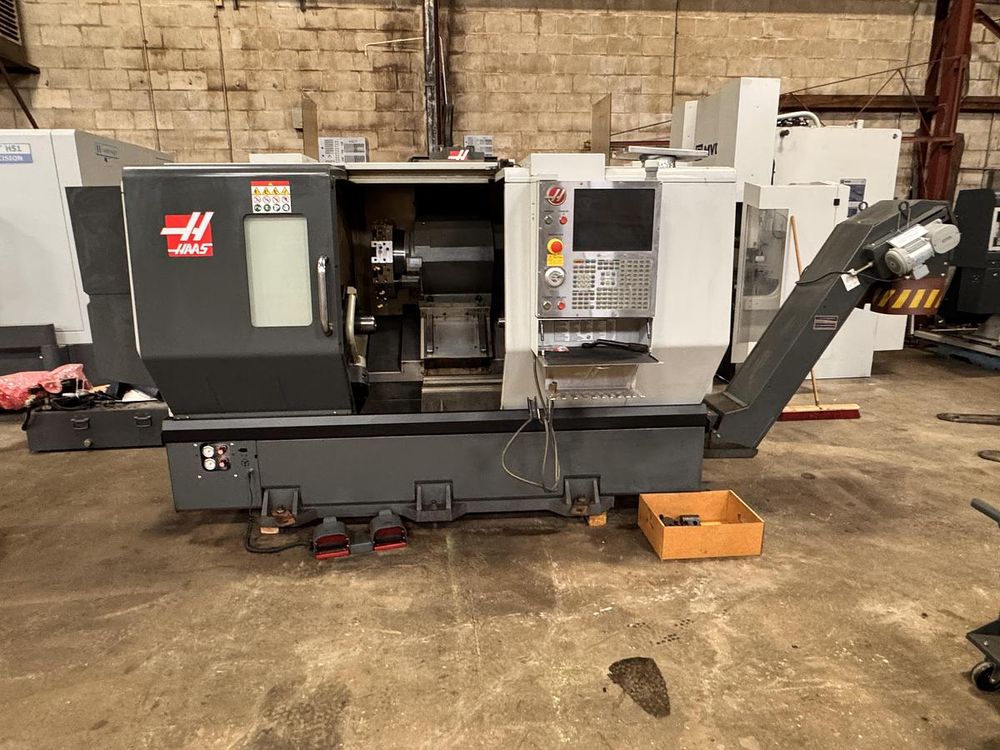

Haas HAAS CNC Control 3400 RPM ST-25 2 Axis

X-Axis Travel: 8.4"
Z-Axis Travel: 22.5"
Rapid Feedrate X-Axis: 945 IPM
Rapid Feedrate Z-Axis: 945 IPM

Rigid Tapping
Tool Presetter
Collet Chuck
Hydraulic Tailstock
Chip Conveyor
12 Station Turret
Bar Capacity: 3"
Max Part Swing: 21"
Max Cutting Diameter: 11.75"
Max Cutting Length: 22.5"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
Spindle Torque: 300 ft-lbs @ 500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.5"
Max Thrust X: 4,100 lbf
Max Thrust Z: 5,100 lbf
Number of Tools: 12
Boring Bar Rear Clearance: 4"
Coolant Capacity: 55 Gal
Feed Cutting Time: 1,237 Hrs
Machine Weight: 9,000 lbs
