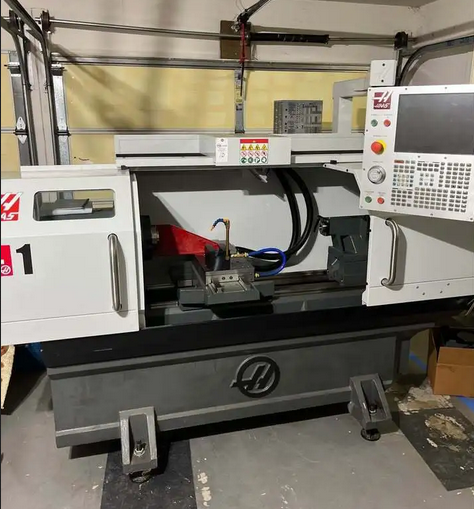

Haas Haas CNC Control 4,500 RPM ST-30SSY 4 Axis

X-Axis Travel: 9.4"
Y-Axis Travel: ±2.0"
Z-Axis Travel: 31.75"
Rapids on X: 945 IPM
Rapids on Y: 500 IPM
Rapids on Z: 1,200 IPM
C-Axis Spindle Rating: 5 HP
Haas CNC Control
Programmable Tailstock
High Pressure Coolant
Jet Air Blast
Wireless Intuitive Programming
Automatic Tool Presetter
Rigid Tapping
Servo Auto Door
Remote Jog Handle
Chip Conveyor
Haas Servo 300 Barfeed
Bar Capacity: 3"
Max Part Swing: 23"
Max Cutting Diameter: 16"
Max Cutting Length: 31.75"
Between Centers: 32.5"
Max Spindle Speed: 4,500 RPM
Spindle Power: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3.50"
Max Torque: 300 ft-lb @ 500 RPM
Max Torque w/Optional Gearbox: 1,000 ft-lb @ 150 RPM
Live Tooling Spindle: 6,000 RPM
Chuck Size: 10"
Tool Turret: 24 Stations
10" Hydraulic Chuck
All Available Static Tool Holders
All Available Live Tool Holders
