Haas Haas CNC control 4000 rpm ST-15 2 Axis

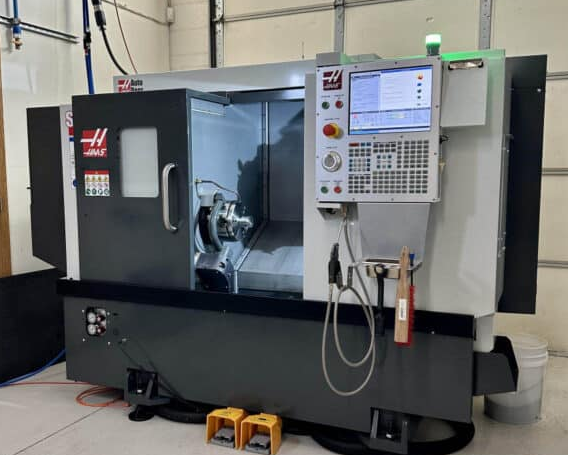

HAAS ST-15
2020

Chuck size 8.3″
Maximum part swing 16.5″
Maximum cutting diameter (with BOT turret) 12.00″
Maximum cutting length 16.0″
Bar capacity 2.50″
X axis travel 7.9″
Z axis travel 16.0″
X axis rapid traverse 1200 ipm
Z axis rapid traverse 1200 ipm
Spindle nose A2-6
Spindle max rating 20.0 hp
Spindle max speed 4000 rpm
Spindle max torque 150.0 ft-lbf @ 500 rpm
Spindle bore diameter 3.50″
Turret 12-station BOT
OD/ID tool combination compatible
Boring bar rear clearance 0.75″
Shipping dimensions 126″ x 70″ x 81″
Weight 7900 lb
Haas CNC control
1 GB memory
30-gallon coolant tank
Visual part programming system
User-definable macros
Auto door
Bolt-on tool holder kit
Hydraulic chuck A2-6
Early power failure detection
Ethernet interface
HaasConnect
HaasDrop
Lifting provision
Media display M-code
Rigid tapping
Safe run
WiFi connection
Automatic tool presetter
Chuck air blast
Manual tailstock with hydraulic quill
NexJen coolant coalescer
3-phase 6 hp vacuum with VFD controlled by M-code
Stringy material machining support
