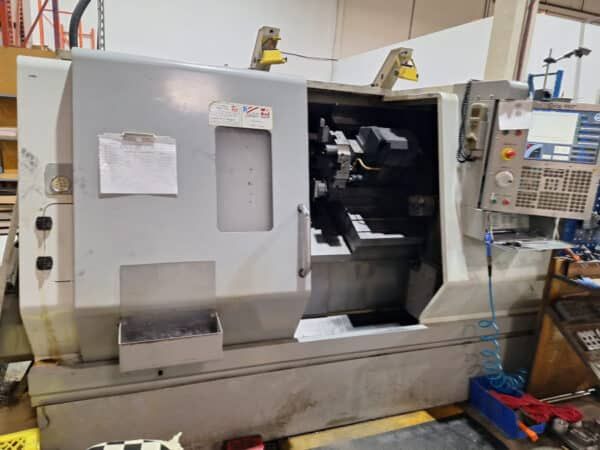

Haas CNC CONTROL 3400 rpm TL-25 4 Axis

X-axis travel: 11.3"
Z-axis travel: 34"
B-axis travel (sub spindle): 33.5"
C-axis contouring: 0.001°
Rapid traverse rate X & Z axes: 710 ipm
Rapid traverse rate B-axis: 710 ipm
Full C-axis
Sub spindle
Live tooling
Air blast
Tool presetter
Bar feeder
High-pressure pump
Chip conveyor
Swing front apron: 30"
Cross slide: 14.5"
Bar capacity: 3.0"
Max turning diameter: 16"
Max turning length: 34"
Max spindle speed: 3400 rpm
Spindle motor: 30 hp
Spindle nose: A2-6
Spindle bore: 3.5"
Max sub spindle speed: 4000 rpm
Sub spindle motor: 8 hp
Max live tooling speed: 3000 rpm
Turret positions: 12
Approximate dimensions: 149" x 77" x 75"
Approximate machine weight: 17,000 lbs
