Haas HAAS CNC control with 15″ color LCD monitor 4000 RPM ST-20Y 3 Axis

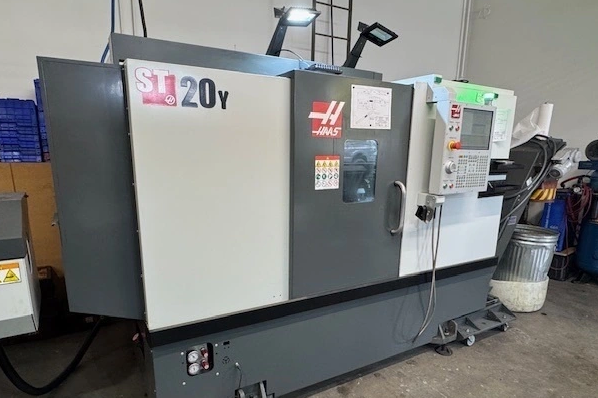

HAAS ST-20Y
2023

Chuck size 8.3″
Maximum part swing 21″
Maximum cutting diameter 11.75″
Maximum cutting length 22.5″
Bar capacity 2.50″
X axis travel 8.4″
Y axis travel 2″
Z axis travel 22.5″
Rapid feedrate X and Y 472 IPM
Rapid feedrate Z 945 IPM
Spindle nose A2-6
Spindle bore 3.50″
Spindle motor rating 20 HP
Spindle speed 4000 RPM
C axis live tooling speed 6000 RPM
C axis spindle motor rating 5 HP
Turret 12 stations
Coolant capacity 55 gallons
Pallet dimensions 143″ x 90″ x 92″
Machine weight 10,480 lbs
HAAS CNC control with 15″ color LCD monitor
High torque C axis live tool
HAAS bar feeder
Programmable hydraulic tailstock
Live and standard tooling
Automatic tool presetter
Chip conveyor
Parts catcher system
USB port
Rigid tapping
Coolant system chip strainer
Oil skimmer
High intensity lighting
Enclosure exhaust system
Media display M-code
Auto door
Ethernet interface
WiFi connection for control
Early power failure detection mode
