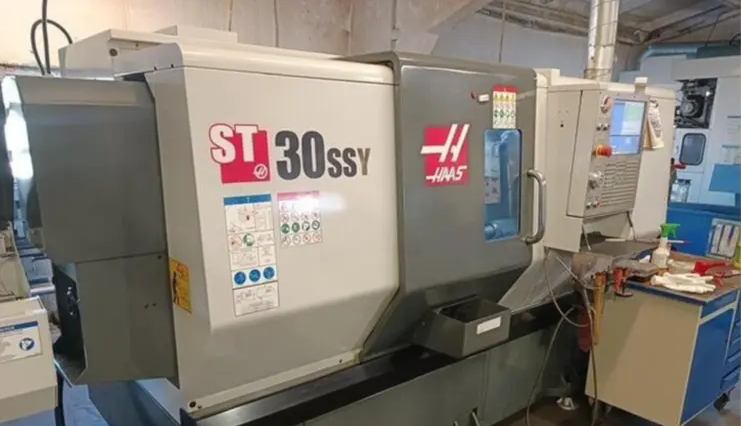

Haas Haas Next Generation Control (NGC) 4,500 rpm ST-30SSY 4 Axis

X-axis travel 12.5" (318 mm)
Z-axis travel 23" (584 mm)
Y-axis travel ±2.00" (±50.8 mm), total 4.00" (101.6 mm)
C-axis full 360° contouring

Haas Next Generation Control (NGC)
Swing over front apron 31.75" (806 mm)
Max cutting diameter 16" (406 mm)
Max turning length 23" (584 mm)

Chuck size 10" (254 mm) hydraulic 3-jaw
Spindle nose A2-6
Bar capacity 3.0" (76 mm)
Spindle drive belt drive

Spindle power 30 hp (22.4 kW) vector drive
Max spindle speed 4,500 rpm
Spindle bore 3.50" (88.9 mm)
Turret type hybrid BOT/VDI

Tool stations 24 total (12 station base + 12 VDI live)
Live tooling radial and axial
Live tool power 5 hp (3.7 kW)
Max live tool RPM 6,000 rpm

Coolant tank capacity 55 gal (208 L)
Coolant pump 3/4 hp (0.6 kW)
Chip conveyor optional (belt type or auger)
Enclosure washdown included

Machine footprint (L x D) 121" x 79" (3,073 x 2,007 mm)
Machine height 83" (2,108 mm)
Machine weight 11,340 lbs (5,144 kg)
