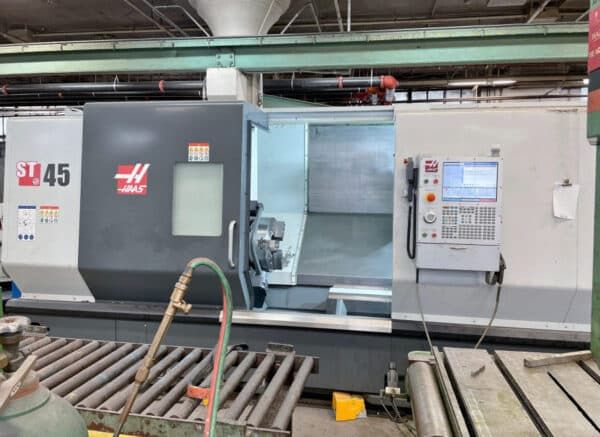

Haas Haas NextGen Control 1,400 RPM ST-45 2 Axis

X-Axis Travel: 17"
Z-Axis Travel: 44"
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 710 IPM
Haas NextGen Control
2-Speed Gearbox
Programmable Tailstock
Tool Presetter
Chip Conveyor
High-Pressure Coolant: 1,000 PSI
Auxiliary Coolant Filtration System
Chip Tray Filter Kit
Remote Jog Handle
Visual Part Programming System
Media Display M-Code (M130)
Spindle Orientation
Rigid Tapping
Macros
Ethernet
USB Port
1GB Memory
WiFi Connectivity
Bar Capacity: 6.5"
Max Swing: 34.5"
Max Cutting Diameter: 25.5"
Max Cutting Length: 44"
Spindle Speed: 1,400 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-11
Spindle Bore: 7"
Chuck Size: 18"
18" 3-Jaw Samchully Hydraulic Chuck
Turret Positions: 12
Turret Type: Bolt-On
Extended Tool Pocket: Up to 33"
Machine Dimensions: 230" x 100" x 90"
Machine Weight: 28,000 lbs
