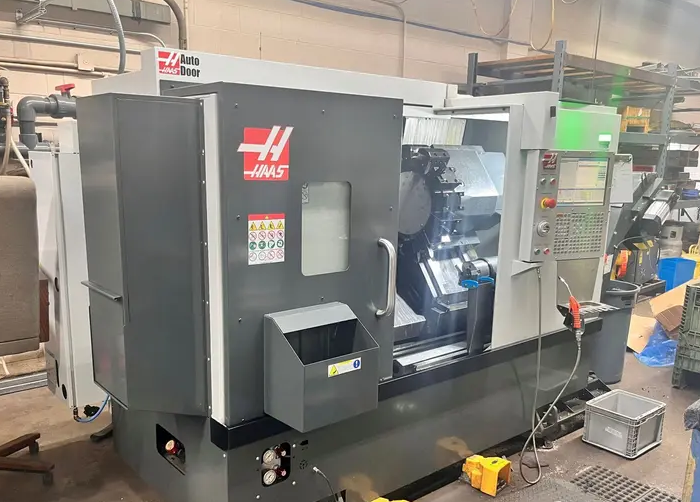

Haas Haas NextGen control 4000 RPM ST-20Y 4 Axis

X-axis travel 8.4"
Y-axis travel ±2"
Z-axis travel 22.5"
C-axis indexing full C-axis
Bar capacity 2.5"
Max cutting diameter 11.75"
Max cutting length 22.5"

Spindle speed 4000 RPM
Spindle motor 20 HP
Spindle nose A2-6

Sub spindle
Sub spindle speed 6000 RPM
Sub spindle chuck size 5"
Sub spindle nose A2-5

Live milling
Live milling speed 4000 RPM
8" 3-jaw hydraulic chuck (main)
5" 3-jaw Samchully HS-05 hydraulic chuck (sub)
24-position BMT65 turret
Chuck air blast (main spindle)
Auto door
Tool presetter
Parts catcher
Chip conveyor
Chip tray filter kit
CNC control cabinet cooler
Early power-failure detection module
Visual Part Programming System VPS editing
Media display M-code M130
Spindle orientation
Rigid tapping
Macros
Ethernet
USB port
1GB memory
HaasConnect remote monitoring
WiFi connect for the Haas control
1 radial live tool holder
1 axial live tool holder
Feed cutting time 946 hours (as of June 2025)
