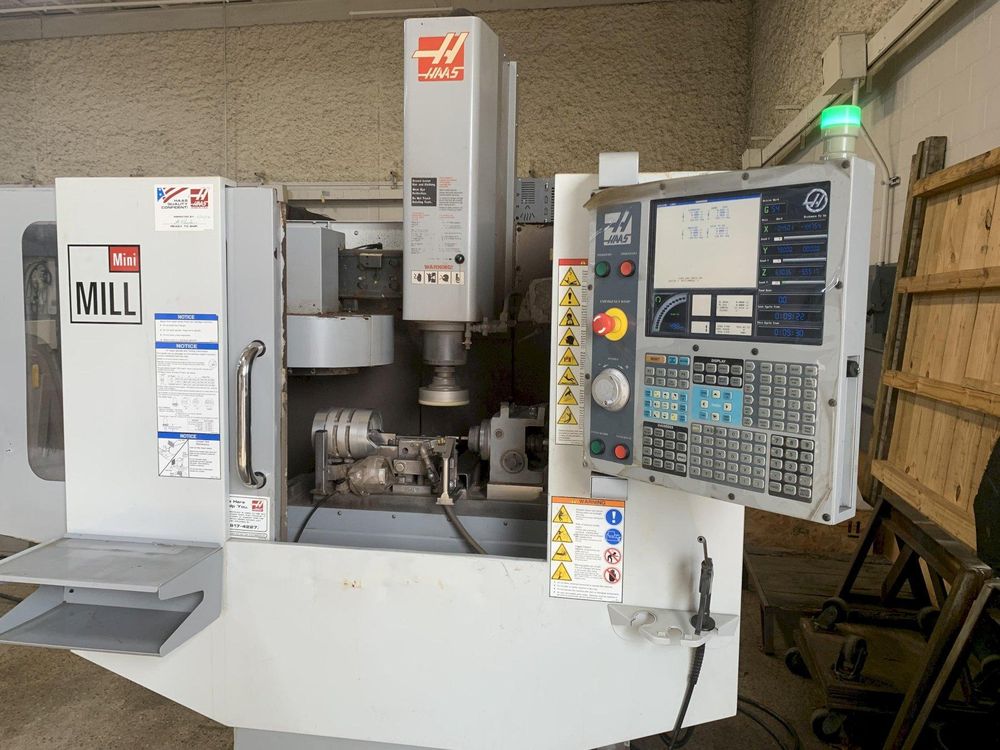

Haas Minimill 3 Axis

HAAS Minimill
Year 2008

Travels (XYZ) - 16" x 12" x 10"
Spindle Nose to Table - 4" Min, 14" Max
Table Size - 36" x 12"
Max Weight on Table - 500 Lbs.
Spindle Taper - CAT 40
Spindle Speed - 6000 RPM Max
Spindle Motor - 7.5 HP
Rapid Traverse - 500 IPM
ATC - 10 Pocket (currently non-operational)
Tool Change Time - 5.0 Sec Chip to Chip
Dimensions - 84" x 60.3" x 102" H
Weight, Approx - 3600 Lbs.

Equipped with:
4-Axis indexer as shown. (not a haas indexer / make unknown)
