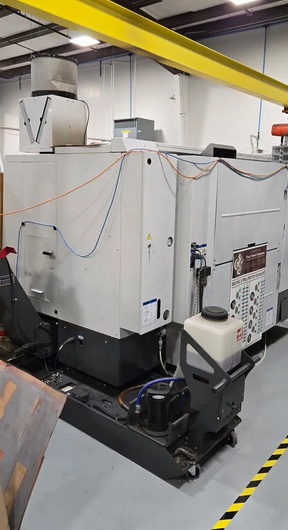

Haas ST-35
Ref :
2797185-3-AW
Condition :
Used
Manufacturer :
Haas
Controller :
-
Spindle Speed :
-
Model :
ST-35
Nb Of Axis :
-
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
X Travel: 9.4"
Z Travel: 32.5"
Rapids on X: 945 IPM
Rapids on Z: 945 IPM
Haas CNC Control
Programmable Tailstock
Chip Conveyor
Tool Presetter
Bar Capacity: 4"
Swing: 31.75"
Max Part Swing: 21"
Turning Diameter: 21"
Machining Length: 26"
Max Cutting Length: 32.5"
Between Centers: 32.5"
Max Speed: 3,200 RPM
Spindle Power: 40 HP
Spindle Nose: A2-8
Spindle Bore: 4.62"
Max Torque: 425 ft-lb @ 325 RPM
Max Torque w/Optional Gearbox: 1,400 ft-lb @ 150 RPM
Chuck Size: 12"
Machine Weight: 14,300 lbs
2 Axis
