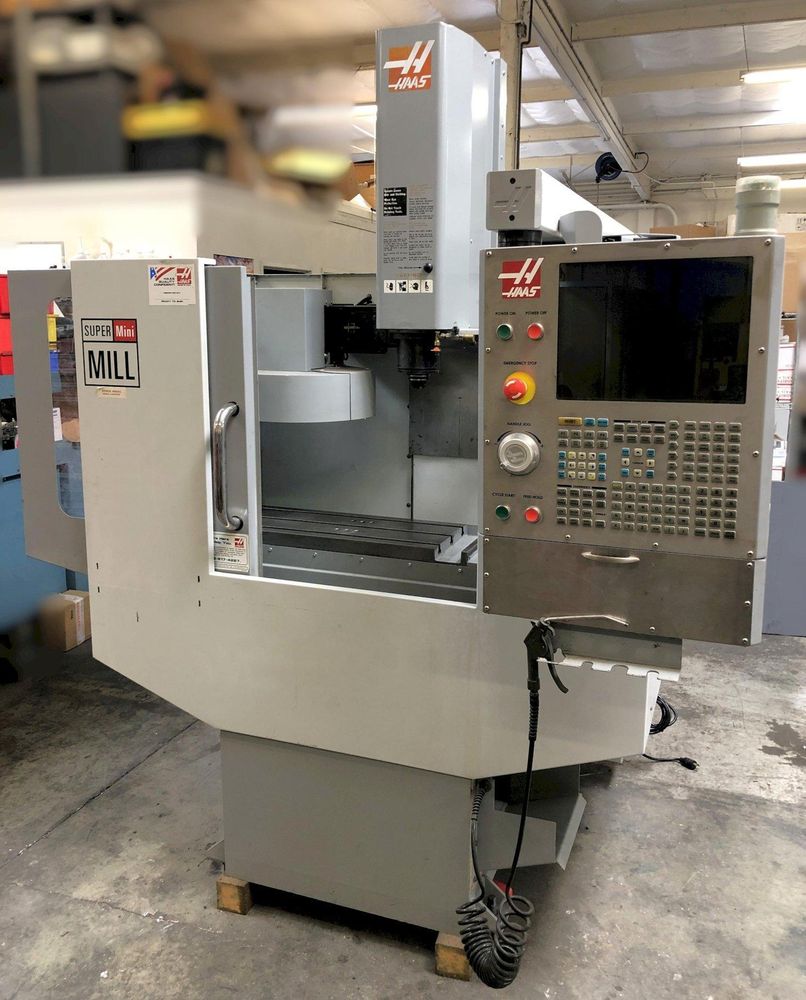

Haas SUPER MINI MILL 3 Axis

X-Axis Travel 16.0 in
Y-Axis Travel 12.0 in
Z-Axis Travel 10.0 in
Spindle Nose to Table (Max) 14.0 in
Spindle Nose to Table (Min) 4.0 in
Spindle Max Rating 15.0 HP
Spindle Max Speed 10,000 RPM
Spindle Max Torque 17.0 ft-lbf @ 4,600 RPM
Spindle Drive System Direct Speed, Belt Drive
Spindle Taper CT or BT 40
Spindle Bearing Lubrication Air / Oil Injection
Spindle Cooling Air Cooled
Table Size 36.0 in x 12.0 in
Work Area 28.75 in x 12.0 in
T-Slot Width 0.626 in - 0.630 in
T-Slot Center Distance 4.33 in
Number of T-Slots 3
Max Weight on Table 500 lb
Max Cutting 833 IPM
Feedrates Rapids on X-Axis 1200 IPM
Feedrates Rapids on Y-Axis 1200 IPM
Feedrates Rapids on Z-Axis 1200 IPM
Axis Motor Max Thrust X 2000 lbf
Axis Motor Max Thrust Y 2000 lbf
Axis Motor Max Thrust Z 2000 lbf
Tool Changer Type Carousel
Tool Changer Capacity 10
Max Tool Diameter (Full) 3.5 in
Max Tool Weight 12 lb
Tool-to-Tool (AVG) 4.2 s
Chip-to-Chip (AVG) 5.0 s
Coolant Capacity 40 gal
Air Requirements 4 scfm @ 100 PSI
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 PSI
Input AC Voltage (3 Phase) Low 220 VAC
Full Load Amps (3 Phase) Low 40 A
Input AC Voltage (3 Phase) High 440 VAC
Full Load Amps (3 Phase) High 20 A
Dimensions (Shipping Pallet) 90 in x 64 in x 100 in
Weight 4000 lb
