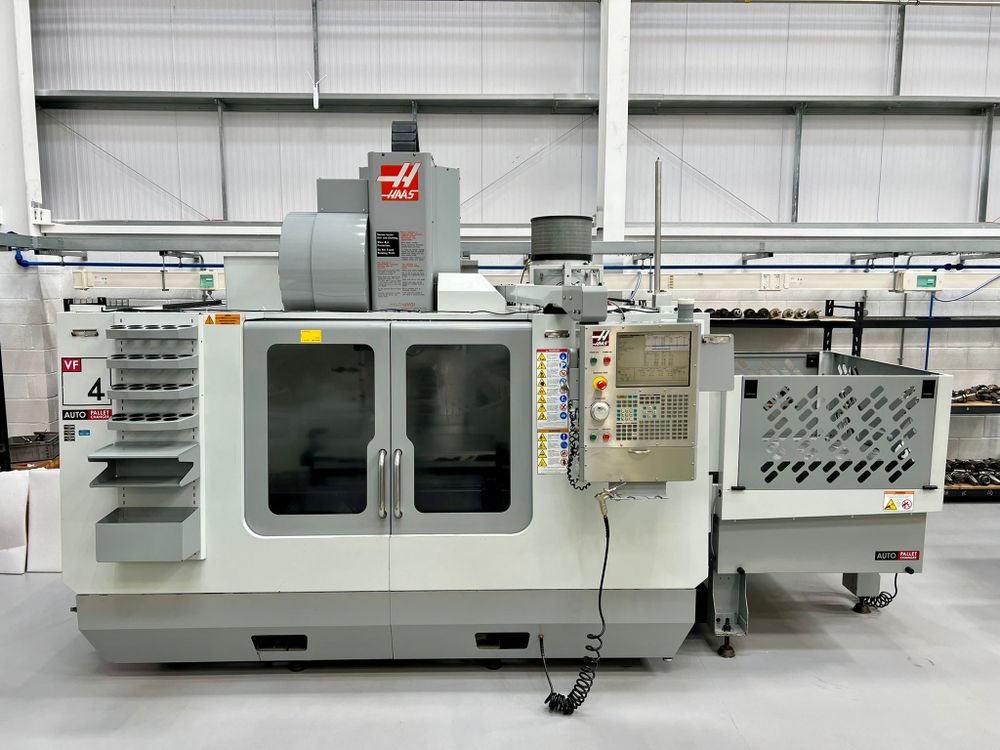

Haas VF4 APC 3 Axis

HAAS VF4 APC
Year 2008

HAAS control
4th axis attachment
HAAS auto pallet changer
Table size 1321 x 457 mm
X-axis travel 1270 mm
Y-axis travel 508 mm
Z-axis travel 635 mm
Max cutting feedrate 18 m/min
Rapid traverse rate 18 m/min
Min table to spindle nose 102 mm
Max table to spindle nose 737 mm
Spindle motor power 40 Hp
Spindle speed up to 10,000 rpm
Tool changer capacity 24 tools
Spindle taper BT40
Coolant system
Interlocked guards
Low voltage lighting
Programmable coolant nozzle
Remote handwheel
Swarf auger
USB port
HAAS filter unit
HAAS HRT210 4th axis attachment
HAAS HTS6 tailstock
PRATT BURNERD 200 mm 3-jaw chuck
Chuck jaws and key included
High speed machining
Rigid tapping
Spindle hours 2164
Machine dimensions (L x W x H) 3629 x 2794 x 2985 mm
Approximate weight 6100 kg
