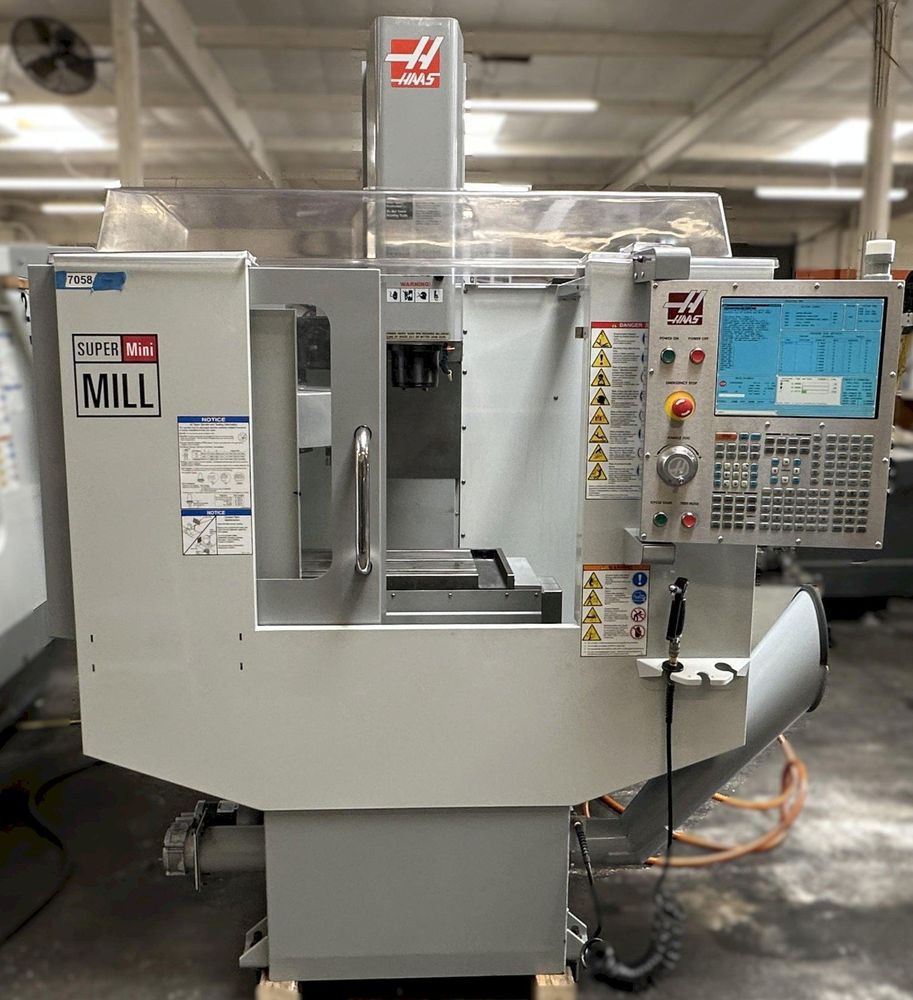

Haas SUPER MINI MILL 3 Axis

X-Axis Travel: 16"
Y-Axis Travel: 12"
Z-Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Coolant Capacity: 40 gal
Table Size: 28.75" x 12"
Max Table Load: 500 lbs
Max Thrust X: 2,000 lb
Max Thrust Y: 2,000 lb
Max Thrust Z: 2,000 lb
Tool to Tool: 2.8 sec
Chip to Chip: 3.8 sec
Dimensions: 68" x 104" x 98"
Weight: 7,200 lbs
Probe
Tool Pre-Setter
Chip Auger
Low Hours
Top Cover
