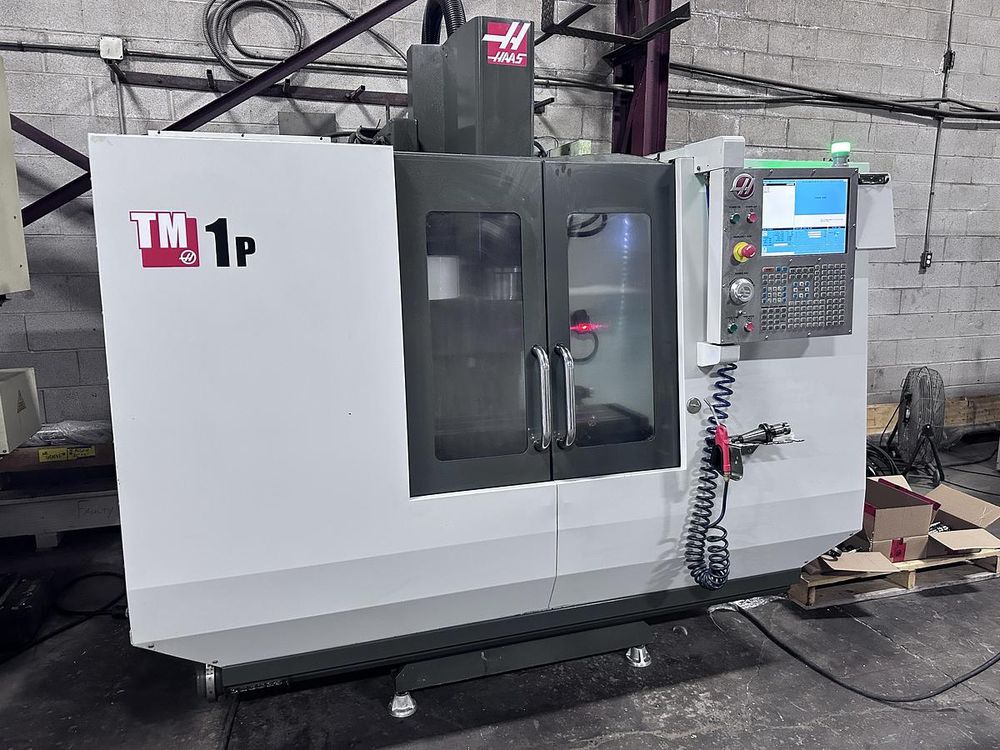

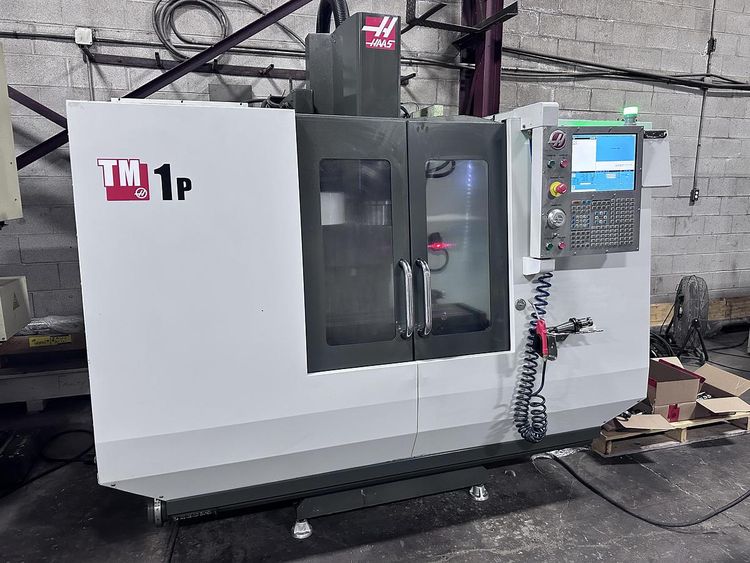

Haas TM-1P 3 Axis

X-Axis Travel 30"
Y-Axis Travel 16"
Z-Axis Travel 16"
Spindle Nose to Table Max 20"
Spindle Nose to Table Min 4"
Spindle HP 7.5 HP
Max Spindle Speed 6000 RPM
Drive System Direct Speed, Belt Drive
Taper CAT 40
Cooling Air Cooled
Worktable Area 47.8" x 10.5"
T-Slot Center Distance 4"
Max Workpiece Weight 350 lbs
Max Cutting Feedrate X, Y, Z 400 IPM
Tool Changer Capacity Carousel Type 10
Max Tool Diameter (Full) 3.5"
Max Tool Weight 12 lbs
Electrics 220V, 1/3 Phase
Approx. Weight of Machine 4,440 lbs
HAAS CNC Control
Brushless 4th Axis Rotary Table Model HRT-160SP
10 Pocket Carousel Tool Changer
WIPS Renishaw Probing System
Rigid Tapping
Intuitive Programming System
Spindle Orientation
Macro Option
Coordinate, Rotation & Scaling
35 Tool Holders
Coolant Pump Kit
