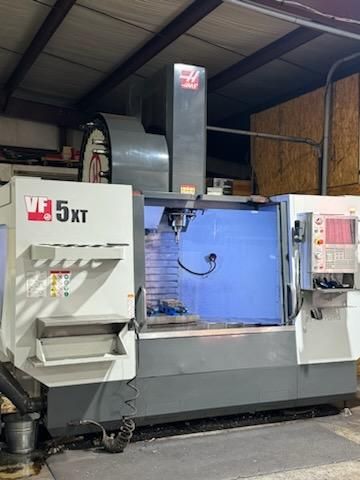

Haas VF-5/50XT 3 Axis

60" X-axis travel
26" Y-axis travel
25" Z-axis travel
62" x 23" table size
7500 rpm spindle speed
CAT 50 spindle taper
30 hp spindle motor
30 tools
4000 lbs table load capacity
710 ipm rapid traverse
4.7" maximum tool diameter
12" maximum tool length
30 lbs maximum tool weight
7"–32" spindle nose to table
340 ft-lbs spindle torque
4.2 / 6.3 second tool change time
168" length
102" width
125" height
16,250 lbs weight

HAAS NEXTGEN CNC control
15" color LCD
Ethernet
USB port
10" extended X-axis travel
Through-spindle coolant 1000 psi
Two-speed gearbox
Wireless intuitive probing system
Visual part programming system
30-position side mount tool changer
Programmable coolant nozzles
Chip auger
Remote jog handle
Auxiliary coolant filter
80-gallon coolant tank
Rigid tapping
Coordinate rotation and scaling
Spindle orientation
Macros
Manufacture date November 2017
Installed in 2018
