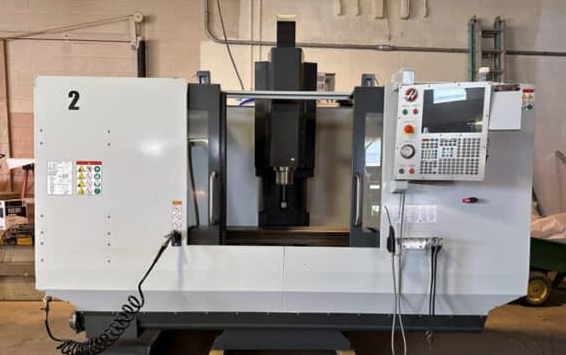

Haas TM-2 3 Axis

HAAS TM-2
2018

X-axis travel 1016 mm (40.00")
Y-axis travel 406 mm (16.00")
Z-axis travel 406 mm (16.00")
Spindle nose to table max 508 mm (20.0")
Spindle nose to table min 102 mm (4.0")
Spindle max power 7.5 HP
Spindle max speed 4000 rpm
Spindle max torque 45 Nm (33.0 ft-lbf) @ 1200 rpm
Drive system direct speed, belt drive
Spindle taper 40
Bearing lubrication grease packed
Spindle cooling air cooled
Table length 1468 mm (57.8")
Table width 267 mm (10.5")
T-slot width 15.9–16.0 mm (0.626–0.630")
T-slot center distance 101.6 mm (4.00")
Number of T-slots 3
Max table load 159 kg (350 lb)
Max cutting feedrate 5080 mm/min (200 ipm)
Rapid traverse X 5080 mm/min (200 ipm)
Rapid traverse Y 5080 mm/min (200 ipm)
Rapid traverse Z 5080 mm/min (200 ipm)
Shipping dimensions 3226 x 1981 x 2540 mm (127.0" x 78.0" x 100.0")
Machine weight 2295 kg (5060 lb)
Haas CNC control
Wired for 4th axis
