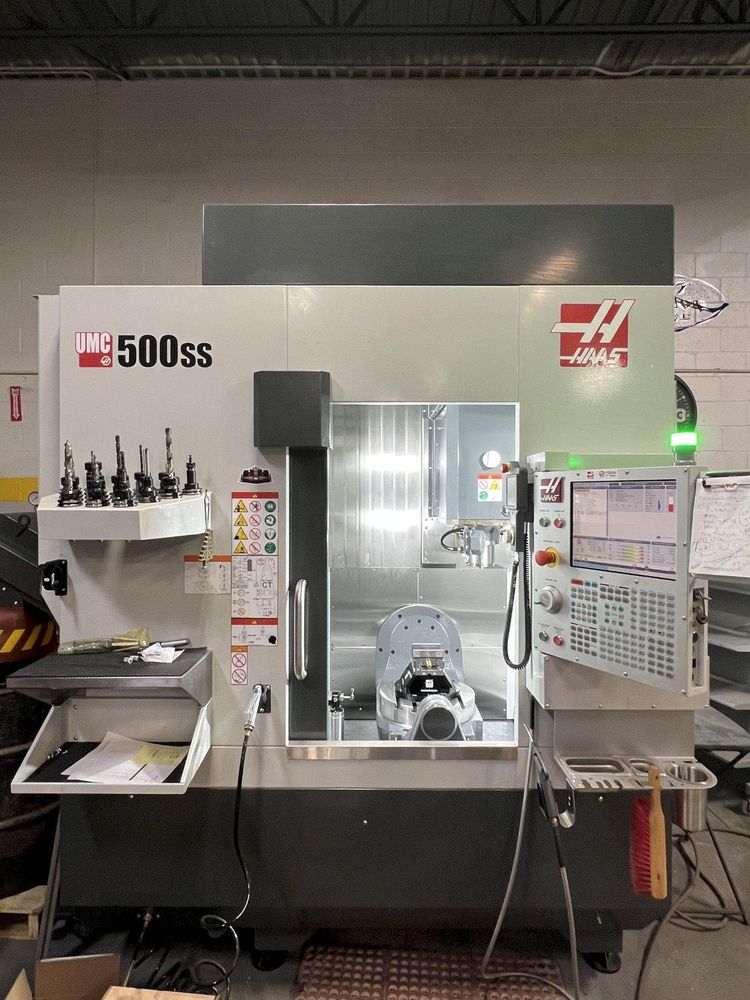

Haas UMC-500SS 5 Axis

Type: Vertical Machining Center (5-Axis or More)
HAAS UMC-500SS
Year: 2022

Y Travel: 16 inches
Weight: 12000 pounds
CNC Control: Yes
Number of ATC: 30
RPM: 12000
Power: 30 horsepower
Number of Axis: 5
Z Travel: 16 inches
X Travel: 24 inches
Max Table Load: 500 pounds
C-Axis Table Rotation Positioning Degrees: 360
Electrics: 220 V / 3PH
Spindle Nose to Platter Max: 20 inches
Spindle Nose to Platter Min: 4 inches
Spindle Speed Max: 12000 RPM
Spindle Taper: CT40
Spindle Motor Power: 30 HP
Max Cutting Rate: 650 IPM
Rapids on X: 1200 IPM
Rapids on Y: 1200 IPM
Rapids on Z: 1200 IPM
Tool Changer: 30 + 1 ATC
Tool to Tool Time: 1.8 seconds
Chip to Chip Time: 2.4 seconds
Weight: 12000 lbs
B Axis Tilt Travel: 120 to 35 degrees
B Axis Max Speed: 179 degrees/second
B Axis Max Torque: 1854 ft-lbf
B Axis Brake Torque: 900 ft-lbf
C Axis Rotation Travel: 360 degrees
C Axis Max Speed: 179 degrees/second
C Axis Max Torque: 1854 ft-lbf
C Axis Brake Torque: 900 ft-lbf
Max Part Swing: 18 inches
Platter Diameter: 15.7 inches
Max Weight Capacity: 500 lbs

Features:
Through-spindle coolant 300 PSI
Auto door for mills
Belt type chip conveyor
Programmable coolant nozzle
Through tool air blast
Air vise ready provision
Inline direct-drive system
TCPC option
