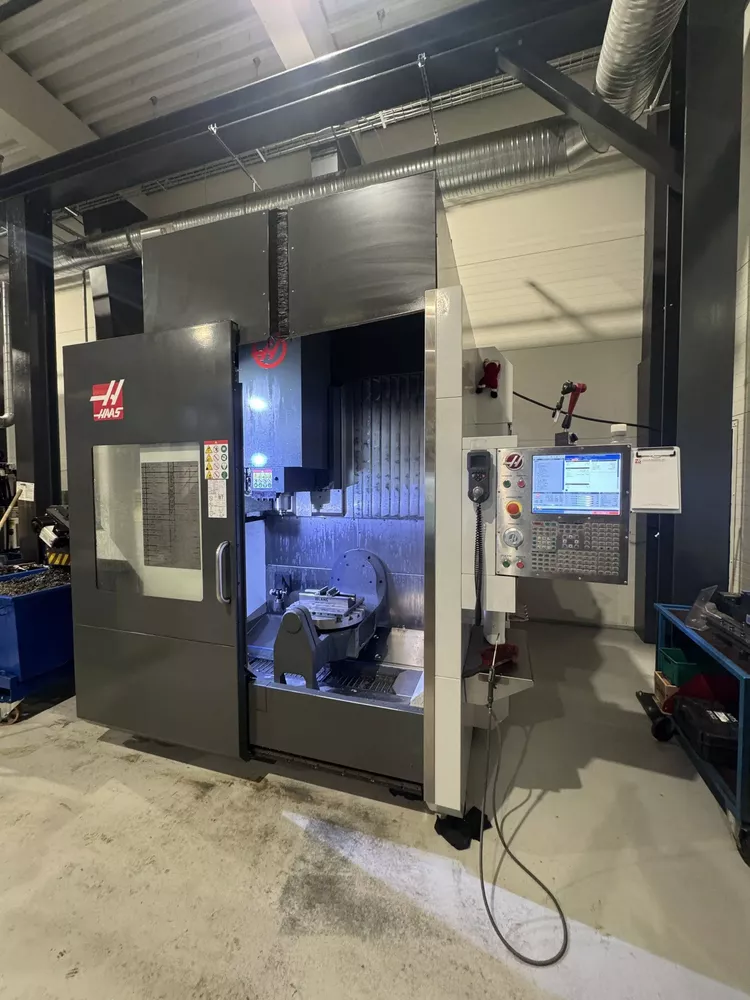

Haas UMC 750 5 AXIS

X-axis travel 762 mm
Y-axis travel 508 mm
Z-axis travel 508 mm
B-axis swivel +120° / −35°
C-axis rotation 360°
Table diameter 500 mm
Table load 300 kg

CNC control HAAS
Spindle drive Inline Direct-Drive

Spindle speed 8100 rpm
Spindle torque 122 Nm at 2000 rpm
Spindle power 22.4 kW
Tool holder SK40

Automatic tool changer 30+1 stations
Maximum tool diameter adjacent 64 mm
Maximum tool diameter with empty adjacent 127 mm
Maximum tool length 305 mm
Maximum tool weight 5.4 kg

Distance spindle nose to table 102–610 mm
Machine length 4420 mm
Machine width 2340 mm
Machine height 2540 mm
Machine weight 6500 kg
