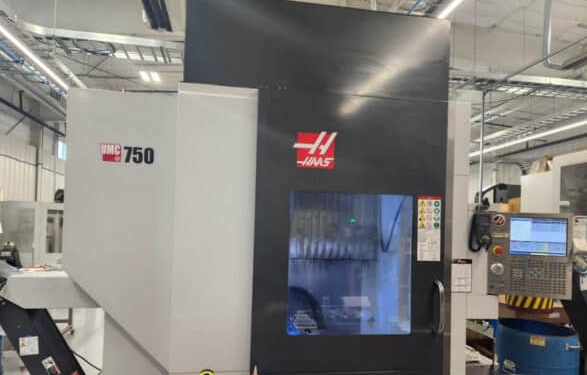

Haas UMC-750 5 Axis

HAAS UMC-750
2017

X-axis travel 30 in
Y-axis travel 20 in
Z-axis travel 20 in
B-axis tilt travel +110°, -35°
B-axis max speed 50 °/sec
B-axis max torque 400 ft-lb
B-axis brake torque 1800 ft-lb
C-axis rotation travel 360°
C-axis max speed 50 °/sec
C-axis max torque 300 ft-lb
C-axis brake torque 500 ft-lb

Spindle nose to table (max) 24 in
Spindle nose to table (min) 4 in
Platter length 24.8 in
Platter width 19.7 in
Max weight on platter 660 lb
T-slot width 5/8 in
T-slot center distance 2.48 in
Number of standard T-slots 7

Spindle max rating 30 hp
Spindle max speed 12000 rpm
Spindle max torque 90 ft-lb @ 2000 rpm
Spindle drive system inline direct-drive
Spindle bearing lubrication air/oil injection
Spindle cooling air

Tool capacity 40+1
Haas CNC control
12000 rpm spindle
30 hp spindle
1 GB standard memory
Belt-type chip conveyor
CAT

Dynamic Work Offset and Tool Center Point Control
Ethernet interface
Haas Connect
Second home position
High-speed machining
Media display M-code
Programmable coolant nozzle
Remote jog handle with color LCD
Rigid tapping

40+1 side-mount tool changer
Through spindle coolant 300 PSI
WIPS-R intuitive probing with Renishaw
