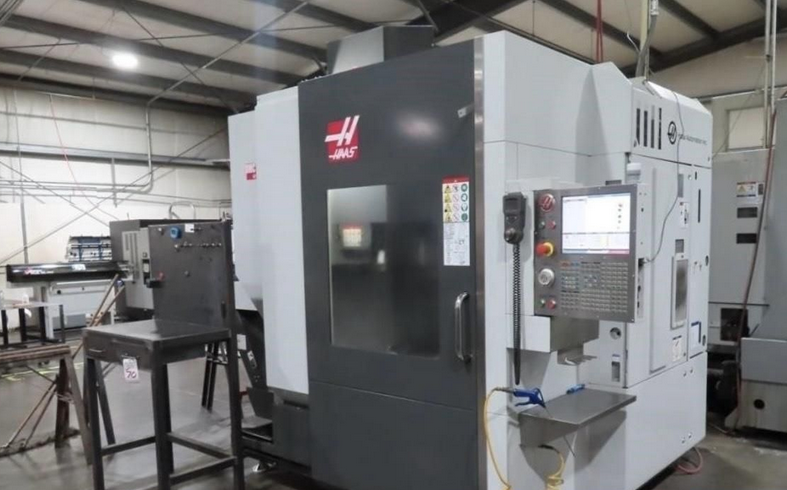

Haas UMC-750 5 Axis

X-axis travel 30"
Y-axis travel 20"
Z-axis travel 20"
B-axis rotary -35° to +120°
A-axis rotation 360°
Rapid traverse rate (X/Y/Z) 1,000 IPM
Haas NextGen control
5-axis machining
Wireless Intuitive Probing System
Coolant thru spindle 300 psi
High speed machining
Rigid tapping
Coolant tank & pumps
Second home position
Dynamic work offsets
Tool Center Point Control (TCPC)
1GB program memory
Max table load 660 lbs
Spindle speed 12,000 RPM
Main motor 30 HP
Spindle taper CAT 40
ATC capacity 40
Table size 19.7" x 19.7"
Belt type chip conveyor
Machine weight 15,000 lbs
