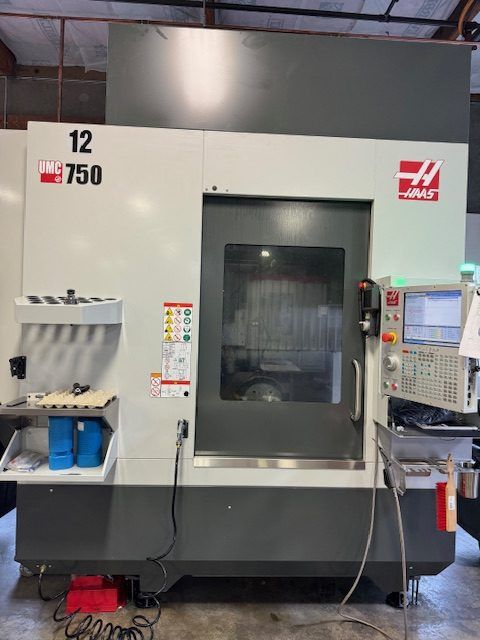

Haas UMC-750 5 Axis

X-axis travel: 30" (762 mm)
Y-axis travel: 20" (508 mm)
Z-axis travel: 20" (508 mm)
5 controlled axes
Integrated dual-axis trunnion table
3+2 positioning
Simultaneous 5-axis machining
Control: Haas Next Generation Control
High-speed machining software
Through-spindle coolant: 300 PSI (21 bar)
High-pressure through-tool coolant
Maximum spindle speed: 15,000 RPM
Spindle motor: 30 HP (22.4 kW)
Spindle taper: 40
Inline direct-drive spindle
Vector spindle drive
Toolholder requirement: G2.5 balanced above 10,000 RPM
High-speed side-mount automatic tool changer
Tool capacity: 50+1
Belt-type chip conveyor
Automatic chip removal
55-gallon discharge height
