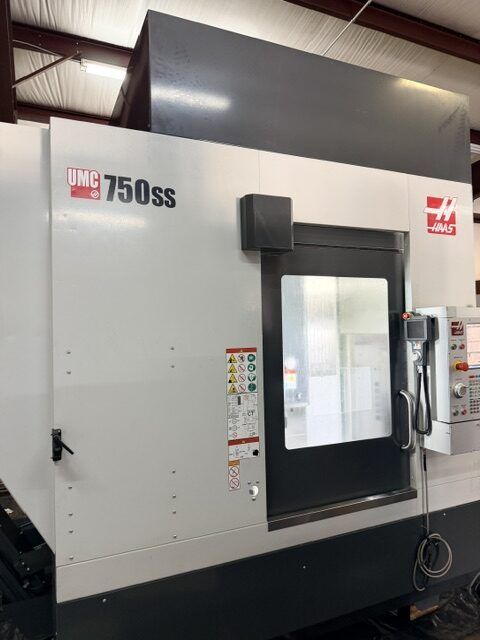

Haas UMC-750SS 5 Axis

X-Axis Travel: 30 in
Y-Axis Travel: 20 in
Z-Axis Travel: 20 in
B-Axis: -35° to +110°
C-Axis: 0.001° Indexing
Control: Haas Next Generation Control
5-Axis Simultaneous Machining
Integral Rotary/Tilt Trunnion Table
Through-Spindle Coolant: 300 psi
Wireless Intuitive Probing System
Rotary Scales
Remote Jog Handle with Touchscreen Display
High-Speed Machining
Rigid Tapping
Spindle Orientation
Coordinate Rotation and Scaling
User Macro Variables
Top Cover
Chip Tray Filter Kit
Enclosure Exhaust
Table Size: 24.8 × 19.7 in
Maximum Table Load: 660 lb
Spindle Speed: 12,000 RPM
Spindle Motor Power: 30 HP
Spindle Taper: CAT 40
Spindle Nose to Table: 4–24 in
Spindle Torque: 90 ft-lb
Rapid Traverse: 1,200 IPM
50+1 Side-Mount Tool Changer
Maximum Tool Diameter: 5 in / 3 in
Maximum Tool Length: 12 in
Maximum Tool Weight: 12 lb
95 Gallon Coolant Tank
Belt-Type Chip Conveyor
Dimensions: 162 × 113 × 120 in
Weight: 19,200 lb
