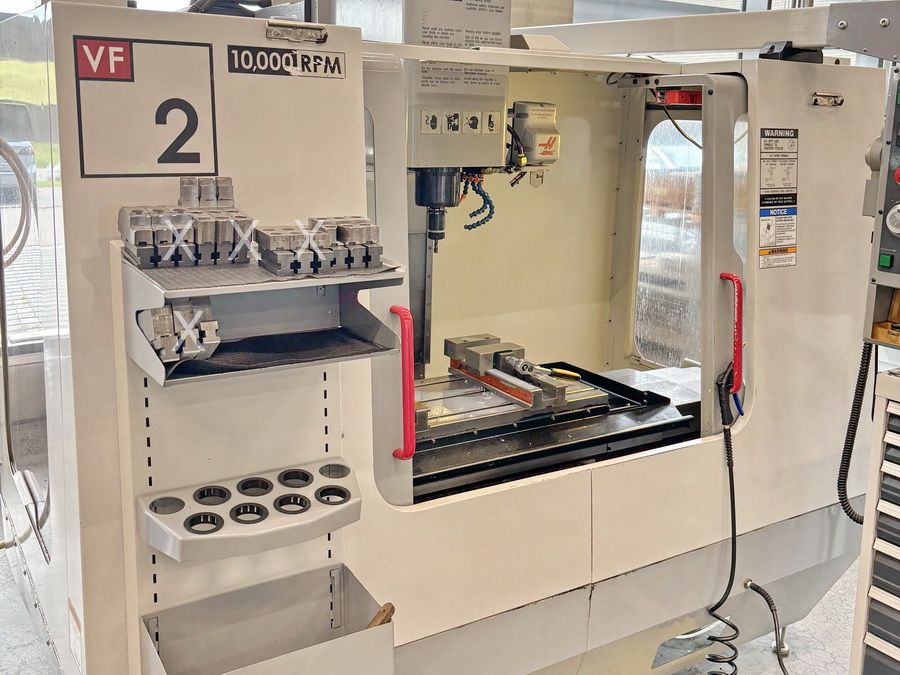

Haas VF 2 DHE 3 Axis

x-travel 762 mm
y-travel 410 mm
z-travel 404 mm

control Haas CNC
max. rpm 10,000 rpm
main spindle power 22.4 kW
max. torque 122 Nm
tool taper SK 40
table surface area 914 x 356 mm
T-slots 3x 16 x 125 mm

max. table load 680 kg
number of tool positions 20 pos.
max. tool diameter 76 (127) mm
max. tool length 279 mm
max. tool weight 5.0 kg

tool change time tool to tool 1.6 sec
tool change time chip to chip 1.8 sec
rapid traverse (X/Y/Z) 35.6 m/min
feed speeds 21,000 mm/min

machine weight approx. 3.5 t
machine dimensions approx. 3.2 x 2.5 x 2.8 m
Automatic Tool Changer
coolant system
documents
swarf management system
