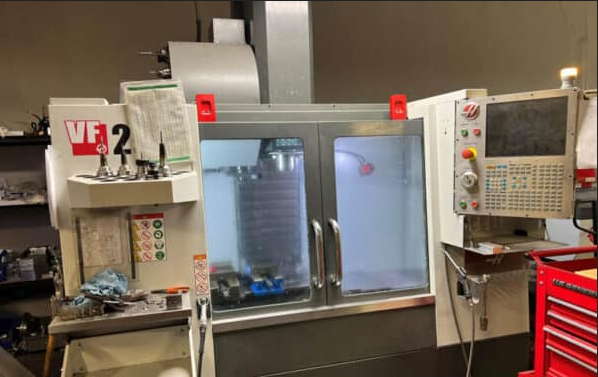

Haas VF-2SSYT 3 Axis

Haas VF-2SSYT
2017

X Axis Travel 30"
Y Axis Travel 20"
Z Axis Travel 20"
Spindle Nose to Table Max 24"
Spindle Nose to Table Min 4"
Table Length 36"
Table Width 18"
T-Slot Width 5/8"
T-Slot Center Distance 4.92"
Number of Standard T-Slots 3
Max Weight on Table 1500 lb
Spindle Max Rating 30 hp
Spindle Max Speed 12000 rpm
Spindle Max Torque 90 ft-lb @ 2000 rpm
Drive System Inline Direct-Drive
Spindle Taper CT
Bearing Lubrication Air/Oil Injection
Cooling Liquid Cooled
Rapids on X 1400 in/min
Rapids on Y 1400 in/min
Rapids on Z 1400 in/min
Max Cutting Feedrate 833 in/min
Tool Changer Type SMTC
Tool Changer Capacity 24+1
Max Tool Diameter Adjacent Empty 5"
Max Tool Diameter Full 3"
Max Tool Length 11"
Max Tool Weight 12 lb
Air Required 4 scfm, 100 psi
Haas CNC Control
Chip Auger
Side Mount ATC
Intuitive Probing Renishaw WIPS-R
Programmable Coolant Nozzle
High Speed Machining
