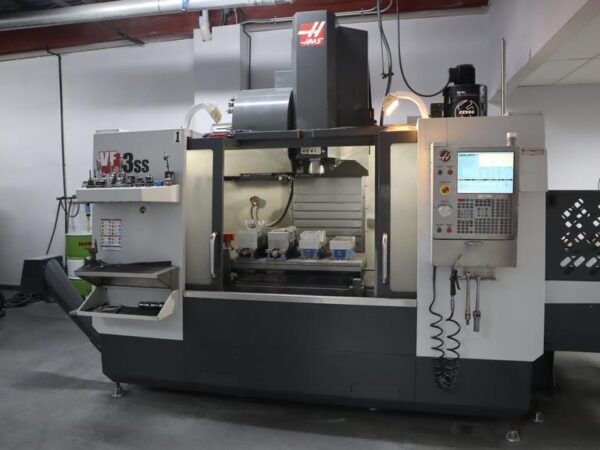

Haas VF-3SS (2-Pallet) 3 Axis

CNC Vertical Machining Center
Haas VF-3SS (2-Pallet)
Year: 2013

Machine Travels (X/Y/Z): 40″ × 20″ × 25″
Number of Pallets: 2
Pallet Change Style: Side-address Pallet Shuttle
Max Distance Spindle to Pallet Surface: 26″
Pallet Size: 40″ × 19″
Spindle Taper: CAT 40
Spindle Speeds: 0 – 12,000 RPM
Max Part Height Thru Pallet Door: 20″
Spindle Drive: 30 HP Vector Spindle Drive
Rapid Traverse (X/Y/Z): 1,400 IPM
Pallet Change Time: 30 seconds
Toolchanger Style: Side-Mount, Twin-Arm
Toolchanger Capacity: 24 + 1 Stations
Max Tool Length/Diameter: 3.5″ Max Diameter Full
Tool Change Time: 1.6 seconds

Dimensions
Approximate Machine Dimensions (L × W × H): 201″ × 93″ × [Not Specified]

Equipped With
Haas Maincon CNC Control
12,000 RPM Max Spindle Speed
24 Station Automatic Tool Changer
Haas Probing System with Tool and Parts Probes
Haas Pallet Changer with (2) 19″ × 40″ Pallets
300 PSI Thru Spindle Coolant
Chip Auger
Rigid Tapping
Coolant Pump and Tank
