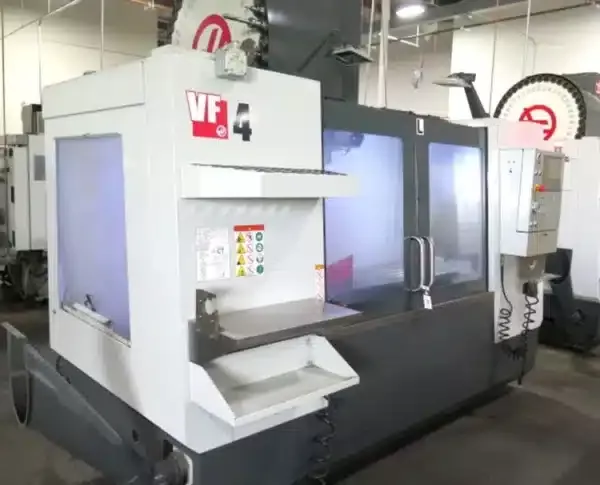

Haas VF-4 3 Axis

X-Axis travel 50"
Y-Axis travel 20"
Z-Axis travel 29"
Spindle Nose to Table max 29"
Spindle Nose to Table min 4"
Table length 52"
Table width 18"
T-Slot width 5/8"
T-Slot center distance 3.15"
Number of standard T-Slots 5
Max. weight on table (evenly distributed) 3500 lbs
Spindle max rating 30 HP
Spindle max speed 10,000 RPM
Spindle taper CT40
Feedrate rapids X 1000 in/min
Feedrate rapids Y 1000 in/min
Feedrate rapids Z 1000 in/min
Max. cutting feedrate 650 in/min
Axis motor max thrust X 2,550 lb
Axis motor max thrust Y 2,550 lb
Axis motor max thrust Z 4,200 lb
Tool changer side mount
Tool changer capacity 40
Max. tool diameter (full) 3.5"
Max. tool weight 12 lb
Tool-to-tool time average 4.2 sec
Chip-to-chip time average 4.5 sec
Air required 4 SCFM, 100 PSI
Coolant capacity 55 gal

Equipped with
10,000 RPM CT40 spindle, geared drive
40 position side mount ATC
4th axis drive and wiring (rotary table not included)
programmable coolant nozzle
rigid tapping
chip auger
1 GB memory
ethernet
Haas connect
high intensity lighting
high speed machining
window blast
