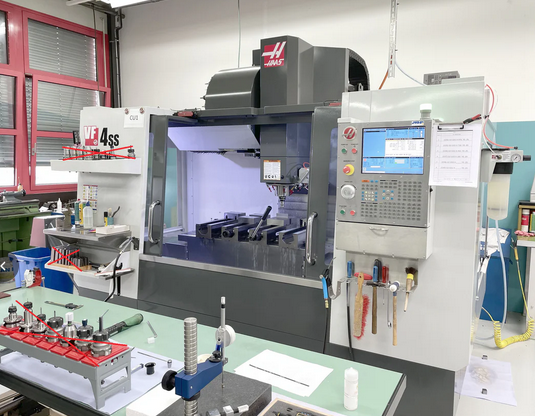

Haas VF-4 SS 3 Axis

X-Axis Travel: 1270 mm
Y-Axis Travel: 508 mm
Z-Axis Travel: 635 mm
3-Axis Machining Center
CNC Control: Haas Automation
Spindle Speed: 0 – 12,000 rpm
Tool Taper: BT40
Distance Spindle Nose to Table: 742 mm
Rapid Traverse: 35.6 m/min
Tool Changer Capacity: 30 tools
Tool Diameter Max: 64 mm (127 mm with free adjacent pockets)
Tool Length: 330 mm
Max Tool Weight: 5.4 kg
Tool Change Time: 1.8 s
Chip-to-Chip Time: 2.4 s
Table Size: 1321 × 457 mm
Table Load Capacity: 800 kg
T-Slots: 5
T-Slot Pitch: 80 mm
T-Slot Width: 16 mm
Coolant Through Spindle: 21 bar
Chip Conveyor
Renishaw Touch Probe
Programmable Rotatable Coolant Nozzle
Coolant System
Additional Coolant Filter
Oil Mist Lubrication Unit
Lamp
Synchronized Tapping
Vice (4x)
