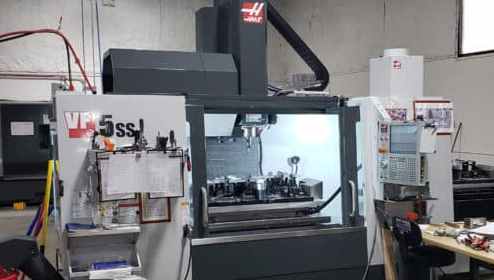

Haas VF‑5SS (2‑Pallet) 3 Axis

HAAS VF‑5SS (2‑Pallet)
Year: 2023

Table width: 23″ (584 mm)
Table length: 52″ (1321 mm)
Maximum table load: 1,750 lb (794 kg)
T‑slot width: 0.625″ (15.875 mm)
Center distance: 3.15″ (80 mm)
X‑axis travel: 50″ (1270 mm)
Y‑axis travel: 26″ (660 mm)
Z‑axis travel: 25″ (635 mm)
Spindle nose to table clearance: 7″–32″ (178–813 mm)
Spindle taper: #40
Spindle speed: 0–12,000 RPM
Spindle power: 30 hp (22.4 kW)
Maximum torque: 90 ft‑lb (122 Nm) @ 2,000 RPM
Spindle bearings: ABEC Class 7
Spindle orientation: electronic
Tool changer storage: fully enclosed
Tool capacity: 30+1
Tool type: CT40
Max tool diameter (full): 3″ (76 mm)
Max tool diameter (adjacent empty): 6″ (152 mm)
Max tool weight: 12 lb (5.4 kg)
Tool changer type: all‑electric, bidirectional

Haas CNC control
12,000 RPM spindle, 40 taper, 30 hp vector drive, inline direct‑drive
1 GB program memory
Early power‑failure detection
Ethernet interface
HaasConnect
HaasDrop wireless file transfer
Media display M‑code
Rigid tapping (synchronized)
Safe Run
High‑speed side‑mount tool changer, 30+1 tools
Touch‑screen interface
Wi‑Fi connectivity for control
Through‑spindle coolant (TSC)
WIPS‑R wireless probing system
Auger chip conveyor
Programmable coolant nozzle (P‑COOL)
High‑speed machining package (HSM)
APC‑ready
Midaco pallet system S5025 with hydraulic docking system
