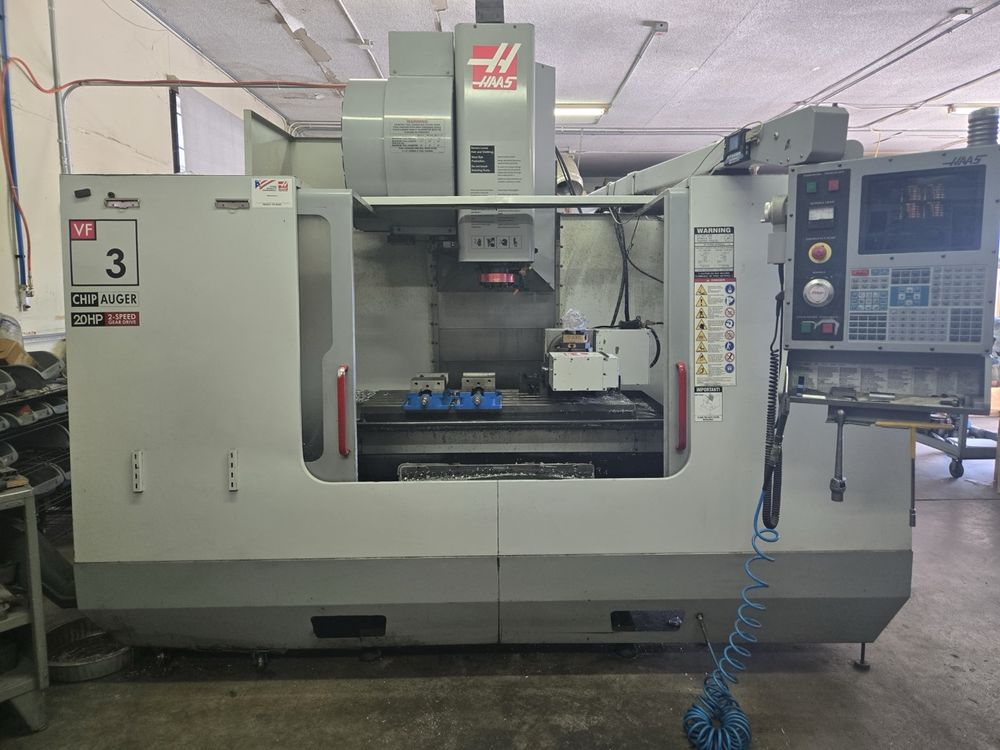

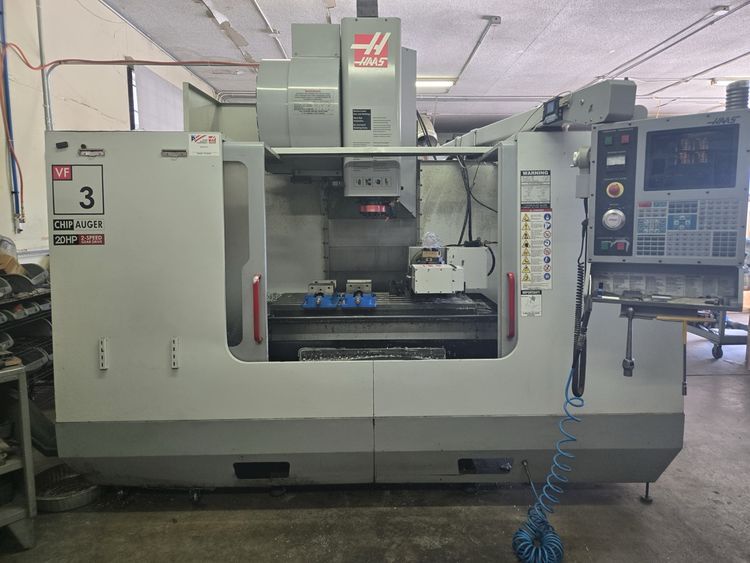

Haas VF3B 3 Axis

X-Axis Travel – 40″
Y-Axis Travel – 20″
Z-Axis Travel – 25″
Spindle Nose to Table – 4″ – 29″
Rapid Traverse – 710 ipm
Cutting Feedrate – up to 500 ipm
Spindle Speed – 7,500 RPM
Spindle Taper – CAT40
Spindle Motor – 20HP
Max Torque – 90 ft/lb
Table Size – 18″ x 48″
Max Table Load – 3,500 lbs
Tool Changer Type – 20-Station Carousel
Max Tool Diameter – 10″
Max Tool Length – 12″
Max Tool Weight – 12 lbs
Approximate Machine Weight – 12,500 lbs
Machine Dimensions – 10.5′ x 8.5′
Electrical – 208V
Control – Haas
Equipped With – Haas TRT210 5th Axis
