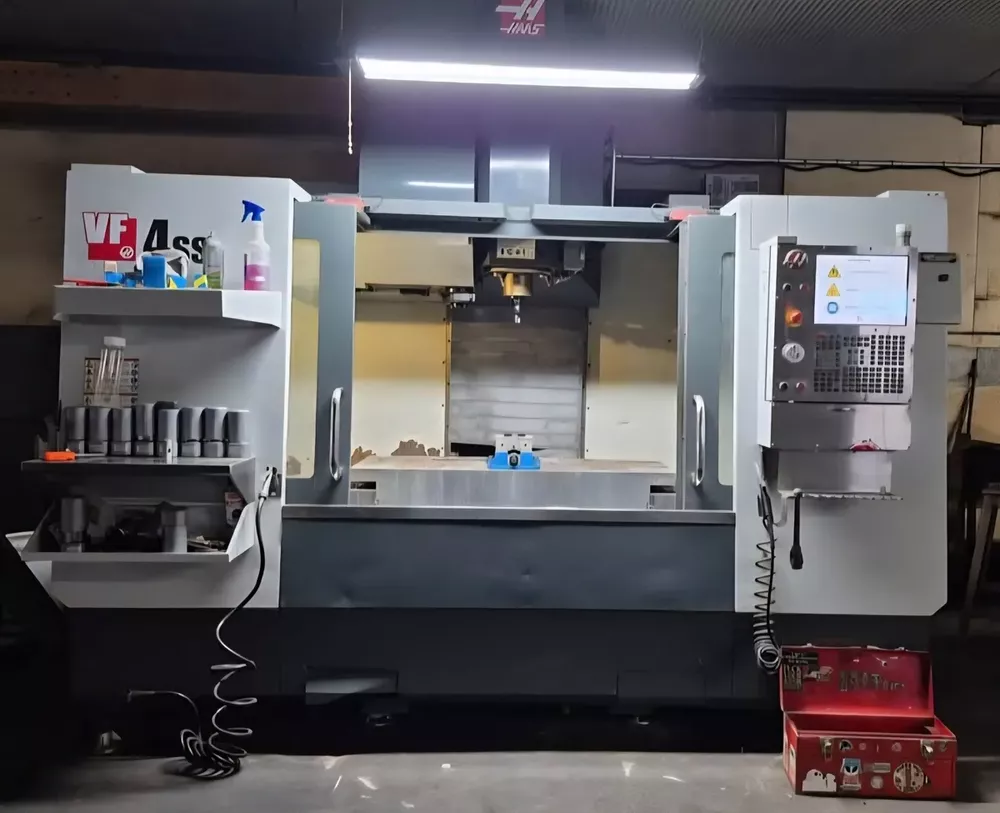

Haas VF4-SS 3 Axis

X Axis Travel: 50 in
Y Axis Travel: 20 in
Z Axis Travel: 25 in
Spindle Nose to Table Max: 29.2 in
Spindle Nose to Table Min: 4.2 in
Spindle Power: 30 hp
Spindle Max Speed: 12,000 RPM
Spindle Max Torque: 90 ft-lbf @ 2000 rpm
Drive System: Inline Direct-Drive
Spindle Taper: CAT 40
Bearing Lubrication: Air / Oil Injection
Cooling: Liquid Cooled
Table Length: 52 in
Table Width: 19.5 in
T-Slot Width: 0.626-0.630 in
T-Slot Center Distance: 3.15 in
Number of T-Slots: 5
Max Weight on Table: 1,750 lb
Max Cutting Feedrate: 833 ipm
Rapid X: 1,400 ipm
Rapid Y: 1,400 ipm
Rapid Z: 1,400 ipm
X Axis Motor Max Thrust: 3,085 lbf
Y Axis Motor Max Thrust: 3,085 lbf
Z Axis Motor Max Thrust: 3,925 lbf
Tool Changer Type: SMTC Arm Type
Tool Changer Capacity: 30+1
Max Tool Diameter (full): 2.5 in
Max Tool Diameter (adjacent empty): 5 in
Max Tool Length: 13 in
Max Tool Weight: 12 lb
Tool-to-Tool Avg: 1.8 s
Chip-to-Chip Avg: 2.4 s
Coolant Capacity: 55 gal
Air Required: 4 scfm @ 100 psi
Inline Air Hose: 3/8 in
Air Coupler: 3/8 in
Air Pressure Min: 80 psi
Dimensions LxWxH: 152 x 99 x 106 in
Weight: 11,720 lb
CNC Control: Haas Nex Gen
Equipped With: 30 Position Tool Changer
Equipped With: 12,000 RPM Spindle CAT 40 Taper
Equipped With: Chip Auger
Equipped With: Ethernet Interface
Equipped With: High Speed Machining
Equipped With: Programmable Coolant Nozzle
Equipped With: Rigid Tapping
Equipped With: 300 PSI Coolant Thru Spindle
Equipped With: Window Blast
