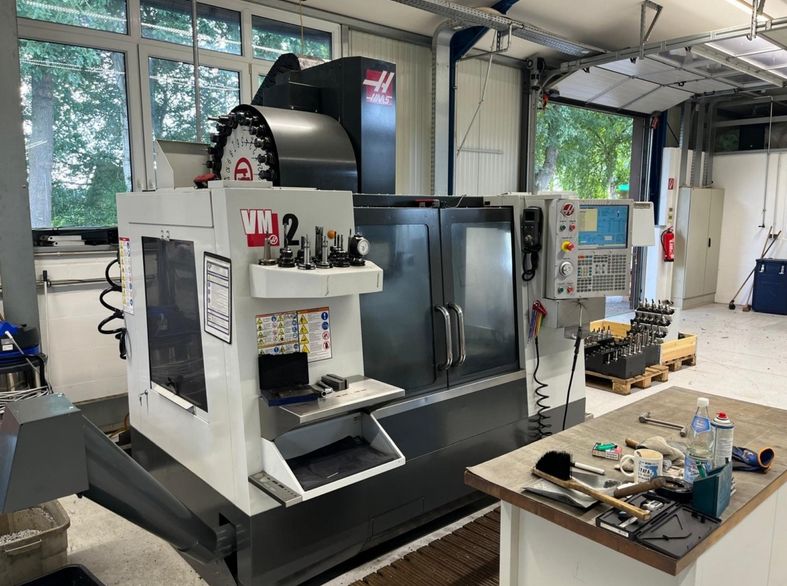

Haas VM 2 3 Axis

X travel: 762 mm
Y travel: 508 mm
Z travel: 508 mm
Rapid traverse X/Y/Z: 18.0 m/min
Control: Haas CNC
Spindle speed: 12,000 rpm
Spindle drive: 22.4 kW
Max. torque: 102 Nm
Spindle taper: BT 40
Table surface area: 914 x 457 mm
T-slots: 16 mm
Max. table load: 1362 kg
Number of tool positions: 24 pos.
Tool taper: SK 40
Max. tool diameter: 76 (152) mm
Max. tool weight: 5.4 kg
Tool-to-tool change time: 2.8 sec
Chip-to-chip change time: 3.6 sec
Number of working hours: 14,375 h
Machine weight: 3.42 t
Machine dimensions: 3.2 x 2.5 x 2.8 m
CE signed
Ready for operation
Electric 400 Volt
Coolant system
Chip conveyor
Tool receiving divers
Cooling equipment
Lehmann 2-Axis dividing head, model T1-507510.RRfix-Y3, weight 80 kg
