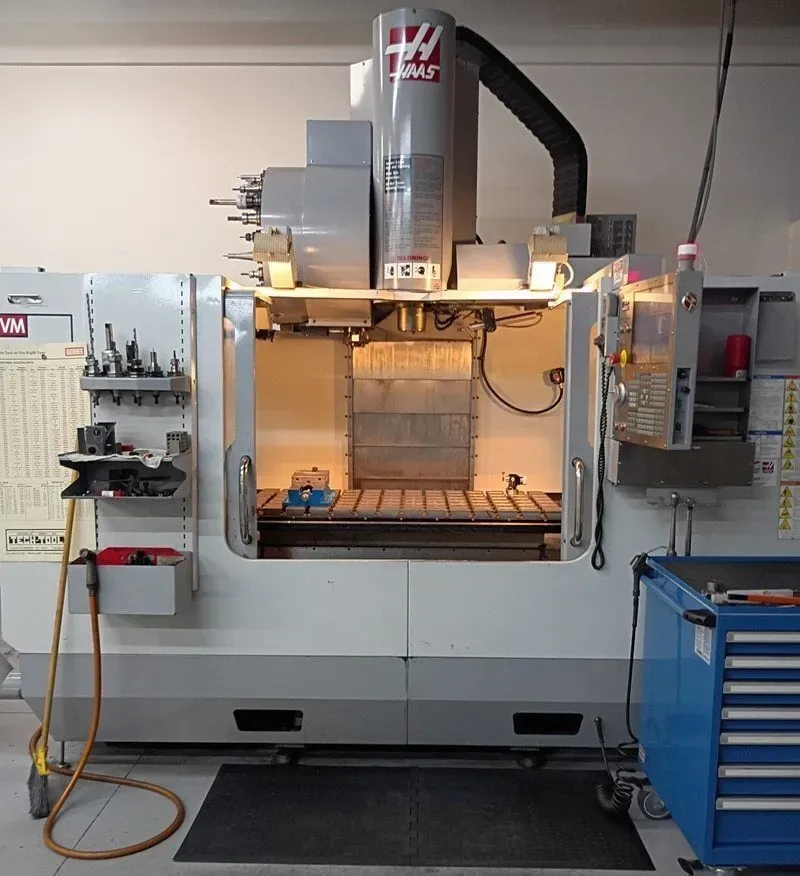

Haas VM-3 3 Axis

X Axis Travel: 40 in
Y Axis Travel: 26 in
Z Axis Travel: 25 in
Rapid Traverse Rate: 710 ipm
Cutting Feedrate Maximum: 510 ipm
Control: Haas CNC
WIPS Wireless Intuitive Probing System
Prewired for 4th Axis
High Speed Machining
Rigid Tapping
Retractable Programmable Air Nozzle
Spindle Orientation
Coordinate Rotation and Scaling
Remote Jog Handle
Ethernet Interface
User Definable Macros
Visual Quick Code
Power Fault Detection Module
Power Surge Protection
Coolant System
Chip Auger
High Intensity Lighting
Table Size: 54 x 25 in
Maximum Table Load: 4000 lb
T Slot Width: 0.626 – 0.630 in
13 T Slots in Y
6 T Slots in X
Spindle Speed: 12000 rpm
Spindle Motor: 30 hp
Maximum Spindle Torque: 90 ft-lbf @ 2000 rpm
Spindle Drive: Inline Direct Drive
Spindle Taper: CAT 40
24+1 Side Mount Twin Arm Tool Changer
Maximum Tool Diameter: 2.5 in
Maximum Tool Diameter with Adjacent Pocket Empty: 5 in
Maximum Tool Length: 13 in
Maximum Tool Weight: 12 lb
Tool to Tool Time: 2.8 sec
Chip to Chip Time: 3.6 sec
Coolant Capacity: 55 gal
Air Requirement: 4 scfm @ 100 psi
Minimum Air Pressure: 80 psi
Electrical: 208/230V / 3 Phase / 50/60 Hz
Machine Dimensions: 150 x 102 x 105 in
Machine Weight: 12720 lb
6 in Kurt Vise
