Haas VM-6 3 Axis

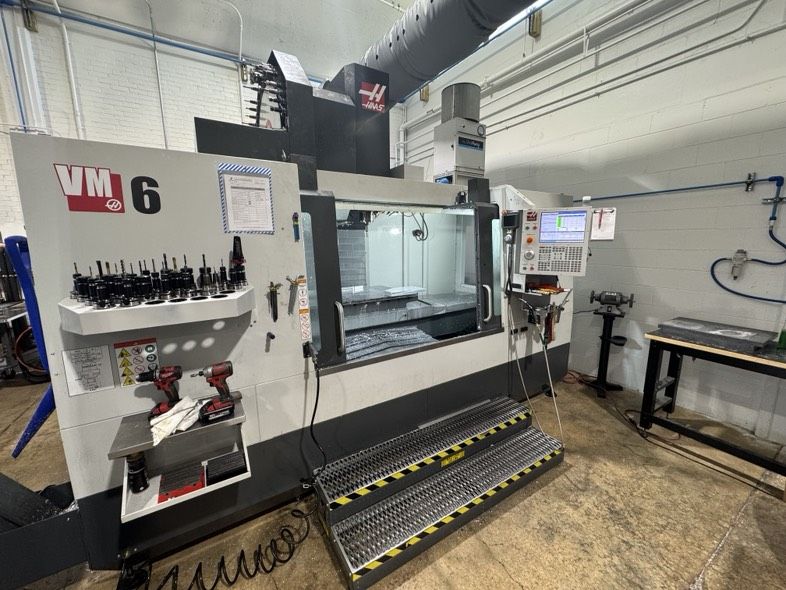

HAAS VM-6
2024

X-axis travel 64.0″
Y-axis travel 32.0″
Z-axis travel 30.0″
Spindle nose to table 4.0″ to 34.0″
Table size 64.0″ × 28.0″
T-slot width 0.626″–0.630″
T-slot center distance 4.92″
Max table load 4000 lbs
Rapid traverse (X/Y/Z) 600 ipm
Spindle type HSK-A63
Max spindle speed 15000 RPM
Spindle power 30 HP
Max torque 90 ft-lbf @ 2000 RPM
Cooling system Liquid-cooled with air/oil injection
Drive system Inline direct-drive
Tool changer capacity 50 + 1 stations

Haas CNC Control
15,000 RPM spindle (HSK 63)
50+1 side mount tool changer
Through spindle coolant
4th axis drive and wiring
Wireless intuitive probing system
Active ballscrew compensation
Quad-auger system with conveyor
Auto door for mills
High-pressure flood coolant
Through-tool air blast
Auxiliary coolant filter
Automatic air gun
Coordinate rotation and scaling
Early power-failure detection module
High-speed machining
Lifting provision
User-definable macros
Programmable coolant nozzle
Large remote jog handle with touchscreen display
Rigid tapping
Safe run
Visual part programming system
Spindle orientation
