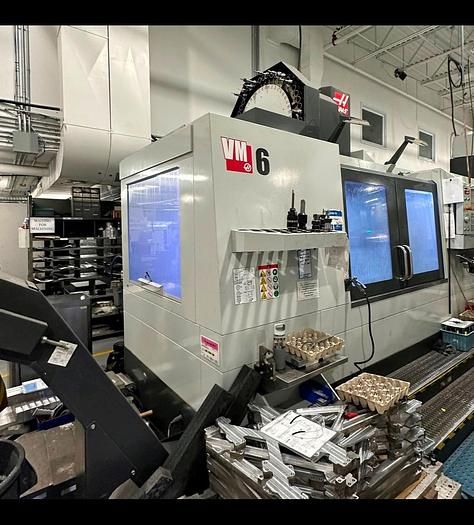

Haas VM-6 3 Axis

X-Axis Travel: 64"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Maximum Cutting Feed Rate: 500 IPM
Rapid Traverse X/Y/Z: 600 IPM

5-Axis Configuration
TR-310 Tilting 2-Axis Trunnion Rotary Table, 310 mm
4th-Axis Drive and Wiring
5th-Axis Drive and Wiring
Linear Scales

Control: Haas CNC Control
Wireless Intuitive Probing System
Visual Part Programming
Dynamic Work Offsets
Tool Center Point Control
High Intensity Lighting
Work Table Light
Expanded Memory: 64 GB
Spindle Orientation
Through Tool Air Blast
Through Spindle Coolant Ready
Through Spindle Coolant: 1000 PSI
Auxiliary Coolant Filter System
Automatic Coolant Refill System
Coolant Tank Oil Skimmer
Coolant Chiller Kit
Haas Chip Lift
Multi-Auger Chip Conveyor System
Chip Tray Filter Kit
Extended Z-Axis Clearance with 6" Risers

Spindle Speed: 12,000 RPM
Spindle Motor Power: 30 HP
Maximum Torque: 90 ft-lbf @ 2000 RPM
Drive System: In-Line Direct Drive
Spindle Taper: CT40
Bearing Lubrication: Air / Oil Injection

Automatic Tool Changer Capacity: 50 + 1
Maximum Tool Diameter: 5"
Maximum Tool Length: 16"
Maximum Tool Weight: 12 lb

Table Size: 64" x 28"
Maximum Table Load: 4,000 lb

Machine Weight: 24,000 lb
