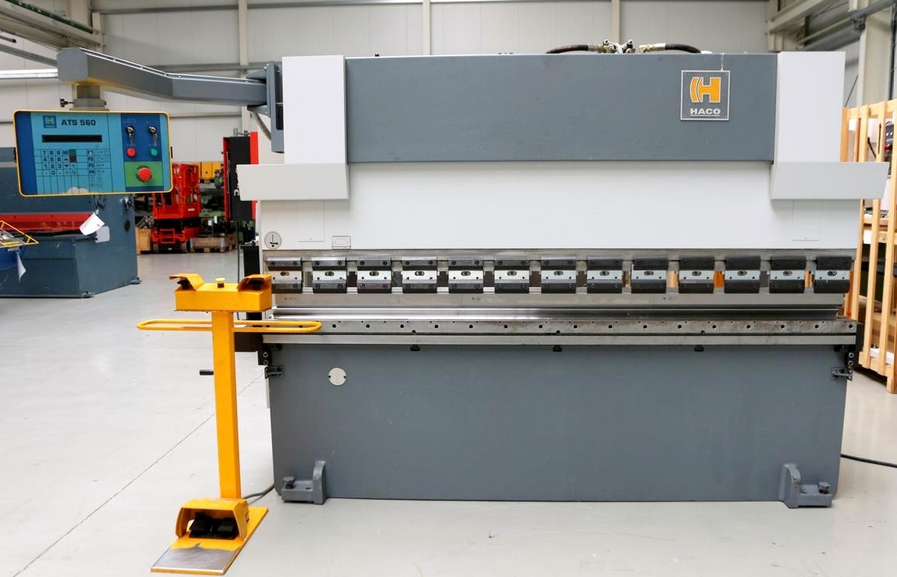

Haco ERMS 2560 60 T

Tonnage: 60 T
Bending length: 2600 mm
Distance between columns: 2100 mm
Throat depth: 200 mm
Stroke: 100 mm
Daylight opening: 280 mm
Table height: 840 mm
Working speed: 10 mm/sec
Return speed: 70 mm/sec
Backgauge travel: 650 mm
Control: ATS 560 NC
NC controlled axes: Y1, Y2, X
NC electro-hydraulic synchronization
NC immersion depth positioning
NC motorized backgauge
Ball screw backgauge
Backgauge speed: 240 mm/sec
Backgauge accuracy: 0.1 mm
2 manually adjustable stop fingers
Manual table crowning
System A upper tool holder
Top wedge crowning
System A lower tool holder
Various bending tools
Movable two-hand/foot control
Upper tool set UKB 11.200 mm
3 upper tool sections, 835 mm each
Upper tool angle: 85°
Upper tool radius: R0.8 mm
Upper tool height: 66.5 mm
Upper tool load capacity: 1000 kN/m
Lower tool set UKB 21.207
3 lower tool sections, 835 mm each
V openings: 16 / 22 / 35 / 50 mm
Lower tool angle: 85°
Lower tool load capacity: 800 kN/m
Oil capacity: 150 L
Voltage: 380 V
Motor power: 7.5 kW
Weight: 4,700 kg
