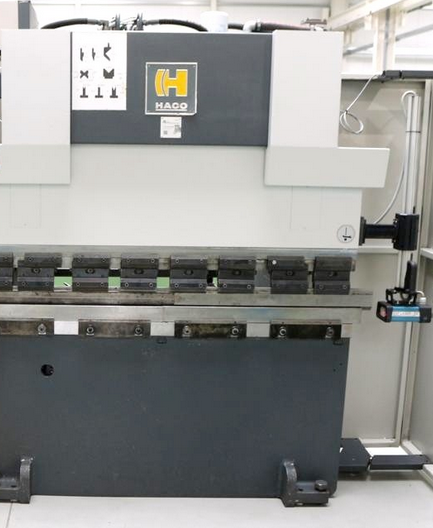

Haco ERM 160.40 40 t

1600 mm chamfer length
1100 mm distance between columns
100 mm stroke of upper beam
195 mm throat
10.0 mm/sec working feed
70.0 mm/sec return speed
180 bar hydraulic pressure
840 mm max work height
110 mm table width
295 mm daylight
ATS 585 control
5.5 kW total power requirement
2500 kg weight
2100 x 1200 x 1800 mm machine dimensions
NC controlled hydraulic press brake with torsion shaft
ATLANTIC NC control ATS 560
Electric back gauge (X axis)
2 stop fingers manually adjustable (R+Z axis)
System A tool holder with cambered upper wedge
Split insert bending tools
Side protection grids
Rear protection
