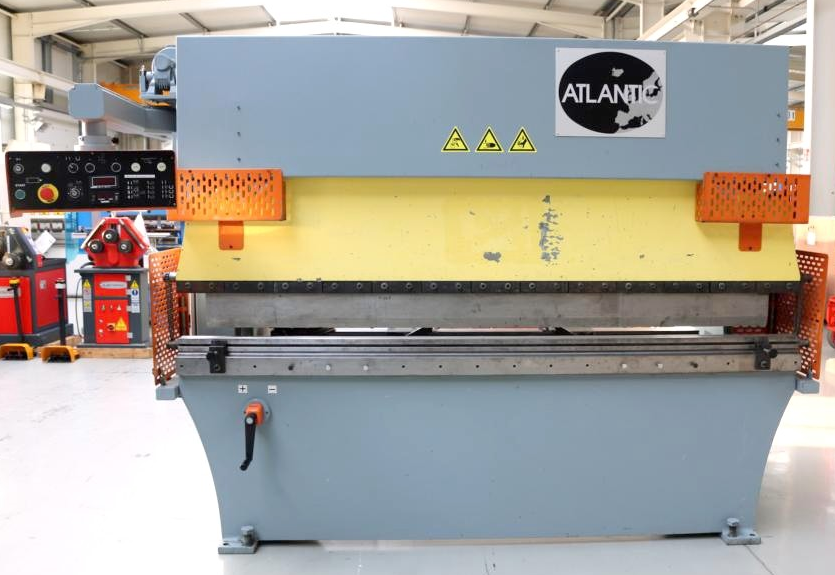

Atlantic HPT 2575 75.0 t

Press force: 75.0 t
Bending length: 2600 mm
Distance between columns: 2100 mm
Stroke of upper beam: 100 mm
Throat depth: 200 mm
Daylight: 280 mm
Working feed: 8.0 mm/sec
Return speed: 55.0 mm/sec
Hydraulic pressure: 330 bar
Control type: conventional
Maximum working height: 840 mm
Power requirement: 7.5 kW
Machine dimensions (L x W x H): 2900 x 1450 x 2100 mm
Machine weight: 4700 kg
Electro-hydraulic press brake with torsion bar
Pivoting control panel (front left)
Stepless depth adjustment Y1 + Y2 (electro-motorized)
Manual backgauge with hand crank
Analog position indicator
2 manually adjustable stop fingers
Split pointed upper tool set (HACO holder)
Rotating MULTI V die block (lower tool)
Pivoting side guards
Double foot switch (freely movable)
2 front material support arms
Operating instructions included (PDF)
