Atlantic HPT 2575 75.0 t

Press force 75.0 t
Chamfer length 2600 mm
Distance between columns 2100 mm
Stroke of upper beam 100 mm
Throat 200 mm
Daylight 280 mm
Working feed 8.0 mm/sec
Return speed 55.0 mm/sec
Pressure 330 bar
Control conventional
Work height max. 840 mm
Total power requirement 7.5 kW
Weight 4700 kg
Dimensions L-W-H 2900 × 1450 × 2100 mm

Simple electro-hydraulic press brake including torsion bar
Pivoting control panel front left
Electro-motorized stepless depth adjustment Y1 + Y2 axes
Manually adjustable material backgauge
Hand crank adjustable from front
Analog position indicator
2 manually adjustable stop fingers

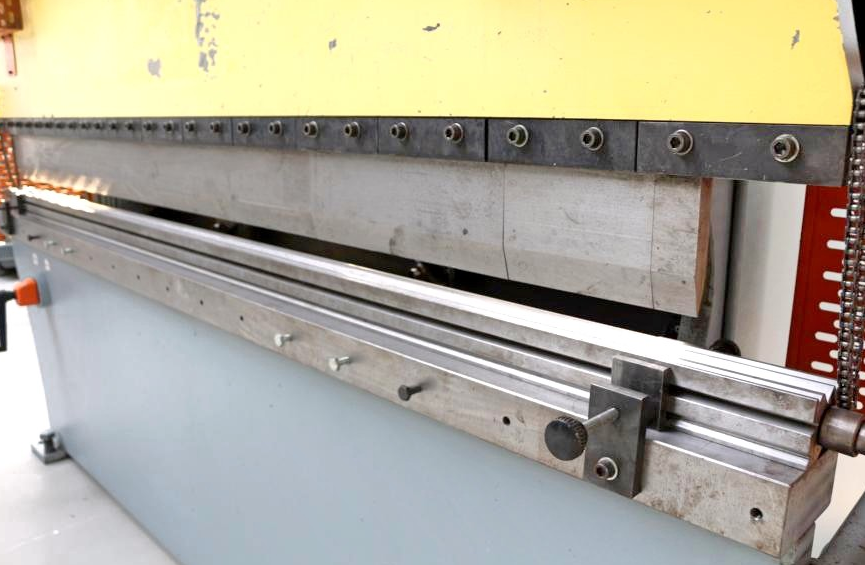

1 split pointed upper tool set HACO holder
1 rotating MULTI V die block lower tool
Side guard pivoting doors
Freely movable double foot switch
2 sturdy front material support arms homemade
Operating instructions PDF
