Haco HSLX 3013

sheet width: 3050 mm
plate thickness: 13.0 mm
stainless steel thickness: 8.0 mm
work height max.: 930 mm
strokes: 9 - 17 strokes/min
cutting angle: 0.5 - 3.0 °
down holder: 18 pcs
control type: CNC
control system: SC 90
engine power: 22.0 kW
machine weight: ca. 9,500 kg
machine dimensions: 4270 x 2200 x 2250 mm

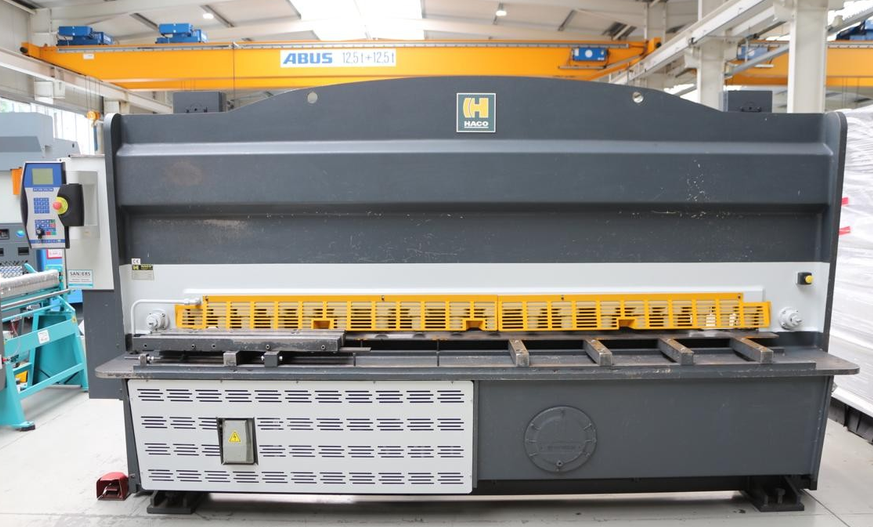

Electro-hydraulic slide-guided guillotine shear
CNC control system SC 90
Preset backgauge positioning
Digital actual position display
Electro-hydraulic cutting angle adjustment
Electro-hydraulic cutting gap adjustment
LCD display control interface
Emergency stop system
NC motorized backgauge with ball screw drive
Hydraulic hold-down system
Front finger guard safety system
Ball bearing support table
Recessed handle support table design
Side stop with mm scale
Front support arms
Freely movable foot switch
Rear safety guard (no light barrier)
Operating manual included
