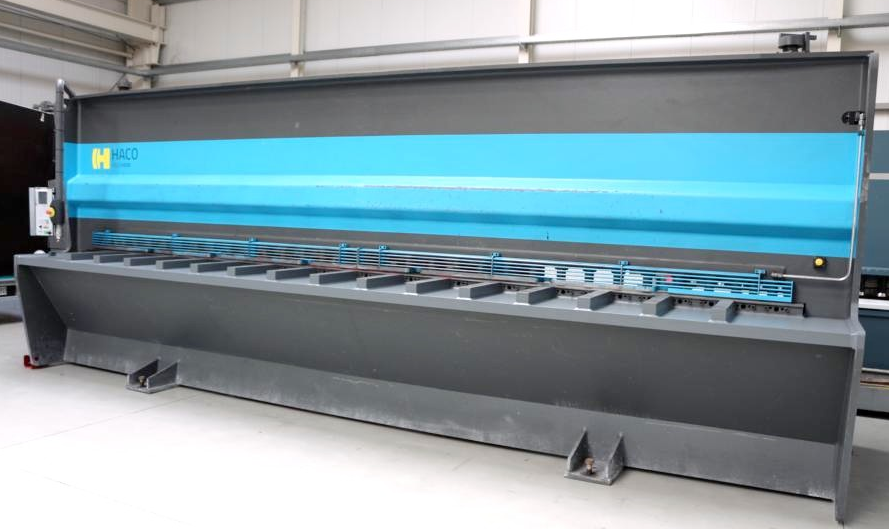

Haco HSLX 6006

sheet width 6020 mm
plate thickness 6.0 mm
stainless steel thickness 4.0 mm
back stop adjustable max 1000 mm
work height max 1030 mm
strokes 5–10/min
cutting angle 0.5–3.0°
down holders 33
control SC 100 T
engine output 11.0 kW
machine weight approx 27000 kg
machine dimensions 7650 x 2400 x 2885 mm
robust electro-hydraulic guillotine shear
guide rail design
HACO CNC control model SC 100 T pivoting at front left
control unit with LCD display
pre-selected positioning of backgauge
digital display of actual position
electro-hydraulic cutting angle adjustment
electro-hydraulic cutting gap adjustment
programmable retraction from backgauge
programmable cutting length limitation
automatic and manual programming mode
emergency stop switch
CNC electro-motor-driven backgauge on recirculating ball screws
continuous adjustment up to max 1000 mm
CNC electro-hydraulic cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
hydraulically operated sheet metal clamp
front finger guard
front support table with recessed grips
side stop with mm scale
freely movable foot switch
rear safety device light barrier
operating instructions PDF
sheet metal holding device for thin sheet metal blanks
