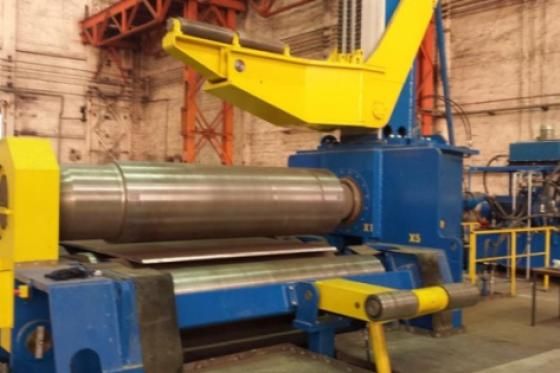

Haeusler VRM-HY

1178 Ton force lower roll / upper roll
Cone bending attachment
Hardened and ground rolls
Width between upper and lower roll 200 mm

Rolling width 3050 mm
Rolling thickness 3x top roll Ø 90 mm
Rolling thickness 5x top roll Ø 100 mm
Rolling thickness prebending 80 mm
Top roll Ø 840 mm
Bottom roll Ø 760 mm
Side roll Ø 610 mm
Number of rolls 4
Rolling speed 1.5 / 3 / 4.5 / 6 m/min
Adjustment lower roll 0 - 300 mm/min
Number of driven rolls 2
Power 180 kW

Length 7500 mm
Width 3250 mm
Height 4250 mm
Weight 130000 kg
