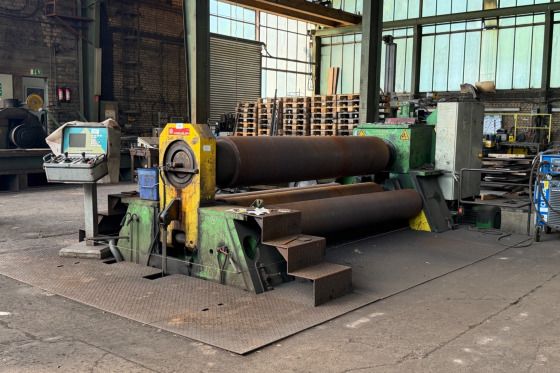

Haeusler VRM-hy
Ref :
2800666-3-GO
Condition :
Used
Manufacturer :
Haeusler
Model :
VRM-hy
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Rolling width: 3100 mm
Rolling thickness 3x top roll Ø: 50 mm
Rolling thickness 5x top roll Ø: 60 mm
Rolling thickness pre-bending: 40 mm
Top roll diameter: 560 + 440 mm
Bottom roll diameter: 540 mm
Side roll diameter: 420 mm
Number of rolls: 4
Rolling speed: 0 - 6
Lower roll adjustment: 0 - 200 mm/min
Side roll adjustment: 0 - 500 mm/min
Number of driven rolls: 2
Power: 81 kW
Machine dimensions: 8700 x 2900 x 3075 mm
Machine weight: 45000 kg
4-roll plate bending machine
Smallest bending diameter: 640 mm
Pressing force against upper roll: 5800 kN
Conical bending attachment
Central lubrication
Equipped for change rolls
