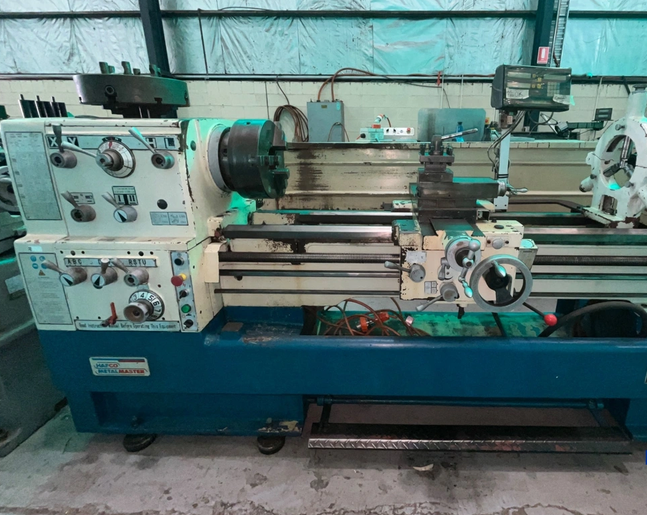

Hafco Engine Lathe 1600 RPM METALMASTER CL68A

Ref : 2805767-3-GO

Condition : Used

Manufacturer : Hafco

Type : Engine Lathe

Spindle Speed : 1600 RPM

Model : METALMASTER CL68A

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
OCEANIA

Swing over bed: 510 mm
Distance between centers: 1500 mm
Swing in gap: 735 mm
Swing over cross slide: 305 mm
Spindle bore: 80 mm
Spindle nose: D1-8 Camlock
Spindle taper: MT7
Spindle speed: 25–1600 RPM
Bed width: 350 mm
Tailstock taper: MT5
Cross slide travel: 316 mm
Compound slide travel: 130 mm
Lead screw: Metric
3-jaw chuck: 315 mm
4-jaw chuck: 350 mm
Motor power: 7.5 kW
Machine weight: 2700 kg
Machine dimensions: 3000 × 1300 mm
Digital readout
Taper turning attachment
Coolant system
