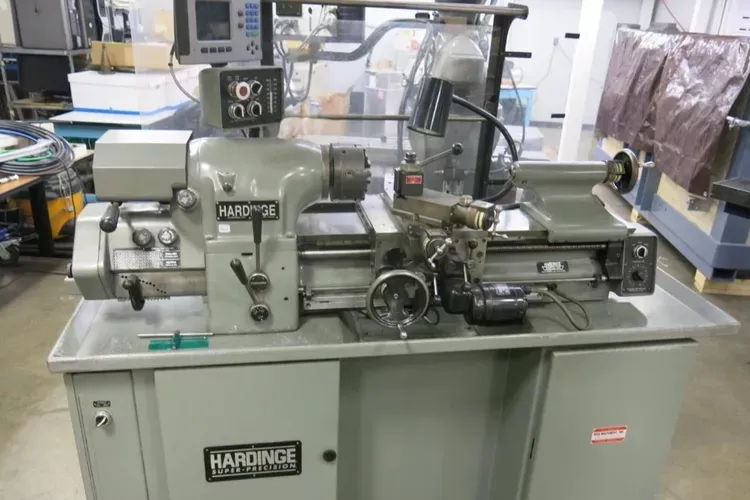

Hardinge Engine Lathe 3,000 RPM HLV-H-EM
AMERICA North (USA-Canada-Mexico)
HARDINGE HLV-H-EM
Swing 11"
Centers 18"
Spindle bore 1.25"
Power 1 HP
Maximum spindle speed 3,000 RPM
Swing over cross slide 6"
Control Acurite 2-Axis Digital Readout
Dimensions 70" L x 30" W x 60" H
Weight 1,750 lbs
Spindle construction HARDINGE ball bearing
Spindle nose HARDINGE threaded
Spindle capacity with 5C collets 1-1/16"
Spindle capacity with step chucks 1-1/16" to 6"
Spindle capacity with jaw chucks 5"
Spindle capacity with expanding collets 3"
Variable spindle speeds 125 – 3,000 RPM
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
Compound slide travel 3"
Carriage power feed range 5/16 – 7 IPM
Cross slide power feed range 3/16 – 4 IPM
Tailstock spindle diameter 1-3/8"
Tailstock spindle taper #2 MT
Inch threading range 11 – 108 TPI
Metric threading range 0.275 – 2.7 mm
Acurite 2-Axis Digital Readout
Dual gearbox for English/Metric thread cutting
Dual reading inch/metric compound and tailstock dials
Work light
Back splash
Collet closer
6-jaw chuck
Aloris tool holder
Coolant system
0.5 – 1 HP 3/60/460V two-speed motor with controls
