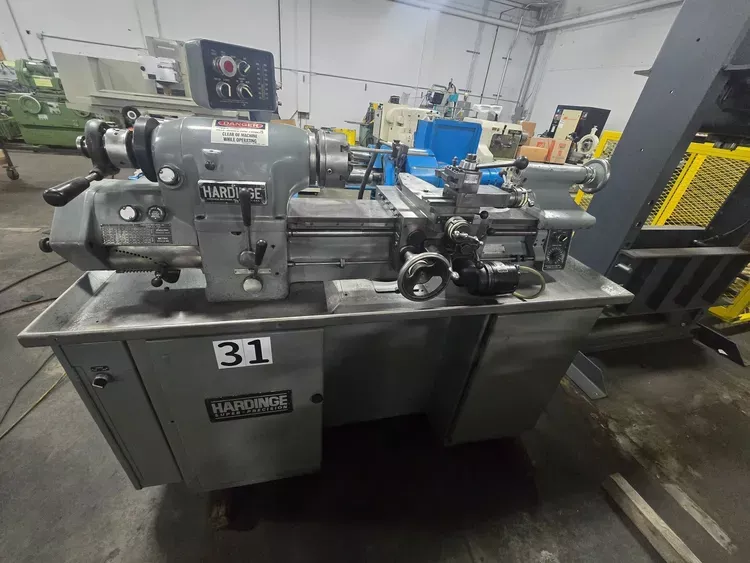

Hardinge Engine Lathe 3,000 RPM HLV-H-EM

Swing Over Bed 11″
Swing Over Carriage 9″
Swing Over Cross Slide 6″
Distance Between Centers 18″
Spindle Bore 1.25″
Spindle Construction Ball Bearing
Spindle Nose Hardinge Threaded
Spindle Capacity with Round Type 5C Collets 1-1/16″
Spindle Capacity with Step Chucks 1-1/16″ to 6″
Spindle Capacity with Jaw Chucks 5″
Spindle Capacity with Expanding Collets 3″
Variable Spindle Speeds 125–3,000 RPM
Hole Through Spindle 1-1/4″
Compound Slide Travel 3″
Carriage Power Feed Range 5/16–7 I.P.M.
Cross Slide Power Feed Range 3/16–4 I.P.M.
Tailstock Spindle Diameter 1-3/8″
Tailstock Spindle Taper #2 MT
Inch Threading Range in Gearbox 11–108 T.P.I.
Metric Threading Range in Gearbox 0.275–2.7 mm
Machine Dimensions 70″ L × 30″ W × 60″ H
Machine Weight 1,750 Lbs.

Dual Gearbox for English/Metric Thread Cutting
Dual Reading Inch/Metric Dial for Compound and Tailstock
Collet Closer
6 Jaw Chuck
Aloris Tool Holder
5C Collets
Self-Contained Coolant System
0.5–1 HP 3/60/460 Volt Two-Speed Main Drive Motor and Electrical Controls
