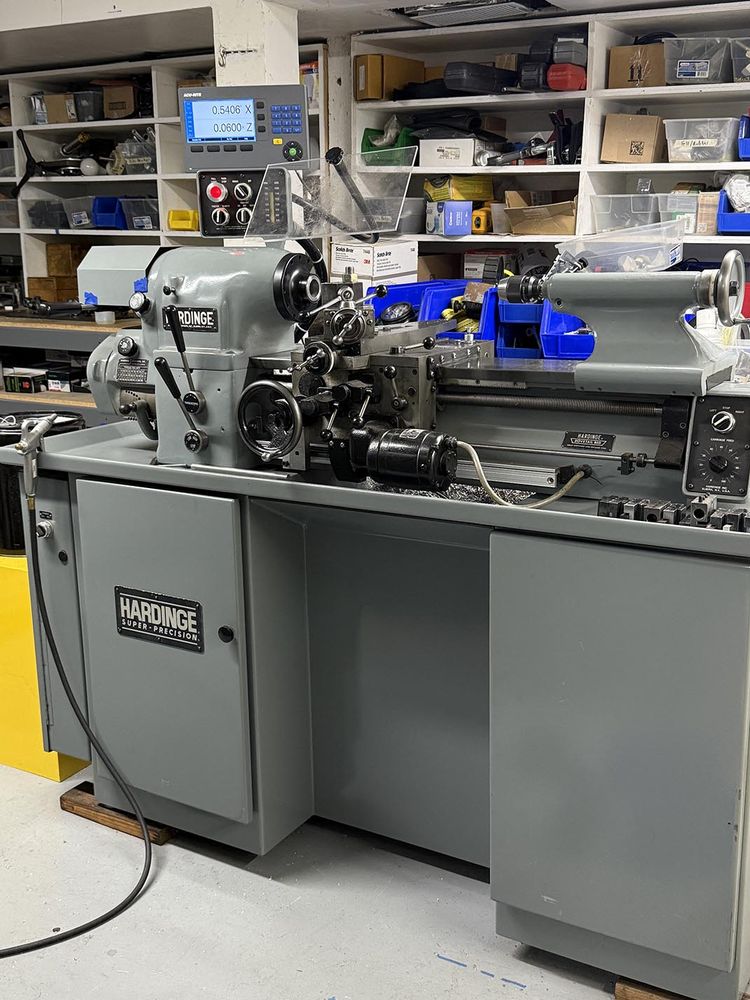

Hardinge Engine Lathe 3000 RPM (variable) HLV-H

Spindle nose thread: 2-3/16" - 10 RH
Spindle speed: 125–3000 RPM (variable)
Spindle bore: 1-1/4"
5C round collet capacity: 1-1/16"
5C hex collet capacity: 7/8"
5C square collet capacity: 3/4"
Step chuck capacity: 1-1/16"–6"
Jaw chuck capacity: 5"
Expanding collet capacity: 3"
Swing over bed: 11"
Swing over carriage: 9"
Swing over cross slide: 6"
Distance between centers: 18"
Compound slide travel: 3"
Carriage power feed: 5/16"–7 IPM
Cross slide power feed: 3/16"–4 IPM
Tailstock spindle diameter: 1-3/8"
Tailstock spindle travel: 3-3/4"
Tailstock taper: #2 MT
Threading range: 11–108 TPI
Spindle construction: Super-precision preloaded ball bearing spindle
1.5 HP two-speed motor
Acu-Rite 2-axis DRO
5C lever collet closer
Quick-change toolpost
Tool holders
3-jaw chuck
Live center
Jacobs drill chuck
Coolant system
5C collets
Reground bed plate
New Turcite under carriage
Reground cross slide
Machine dimensions: 68" × 30" × 60"
Machine weight: 1,700 lb
