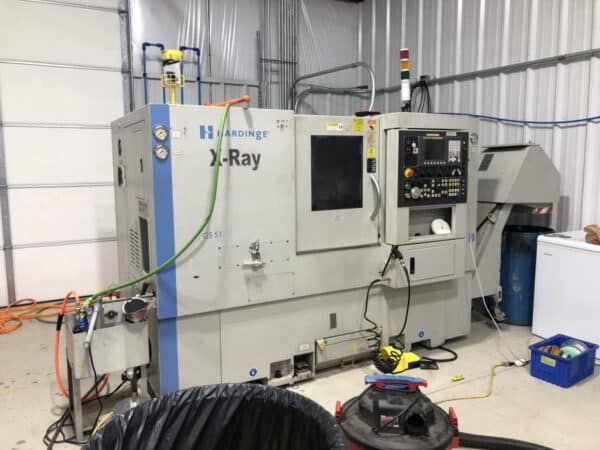

Hardinge Fanuc Series Oi-TD CNC control 5000 rpm GS51 2 Axis

HARDINGE GS51
Year 2014

Swing diameter over way cover max 17.99"
X-axis travel max 5.75"
Z-axis travel max 15.98"
Traverse rate X and Z 1181 IPM
Collet-ready spindle ANSI A2-6 / 20C
Hydraulic draw tube
Through draw tube capacity 2"
Gripping capacity with step chuck and closer 5.9"
Maximum machining diameter 11.18"
Maximum turning length 15.98"
Hang weight with device and component 105 lbs
Spindle centerline height 39.37"
Operator’s reach to spindle 11.02"
Spindle peak power rating 14 hp
Spindle torque 111 ft/lbs
Maximum spindle speed 5000 rpm
Number of turret stations 12
Live tooling power 4.9 hp
Live tooling speed 5000 rpm
Machine dimensions 97" x 63" x 70" (135" length with chip conveyor)
Fanuc Series Oi-TD CNC control
Sub spindle
Milling
Chip conveyor
Parts catcher
Exit conveyor
