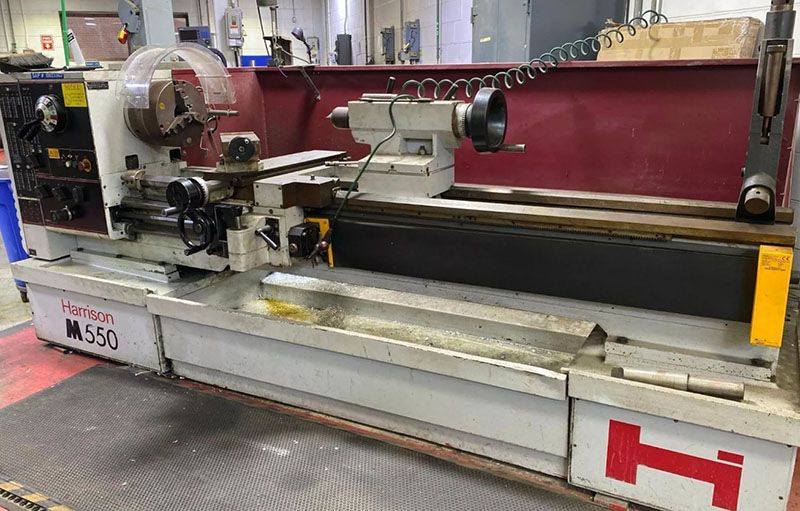

Harrison Engine Lathe 1400 RPM M550 GH

Swing Over Bed: 21.8"
Swing in Removable Gap: 32.7"
Swing Over Cross Slide: 14.5"
Distance Between Centers: 80"
Width of Bed: 15.7"
Hole Thru Spindle: 3.5"
Spindle Nose: D1-11 Camlock
Spindle Speed Range: 18 - 1400 RPM
Threading Range (English): 2 - 84 TPI
Threading Range (Metric): 0.2 - 14 mm
Longitudinal Feed Range: 0.0016" - 0.110" IPR
Cross Feed Range: Half of Longitudinal Feed
Tailstock Spindle Travel: 5.7"
Tailstock Spindle Taper: #6 MT
Approximate Weight: 10,500 lbs
Approximate Dimensions: 140"L x 57"W x 60"H
Inch/Metric Threading Capability
Removable Gap Bed
Pratt Burnerd 3-Jaw Chuck
4-Jaw Chuck
Faceplate
Roller Type Steady Rest
Follow Rest
Live Center for Tailstock
Micrometer Carriage Stop
Thread Dial Indicator
Fourway Rapid Traverse
Coolant System with Removable Chip Pan
12-1/2 HP Main Drive Motor
