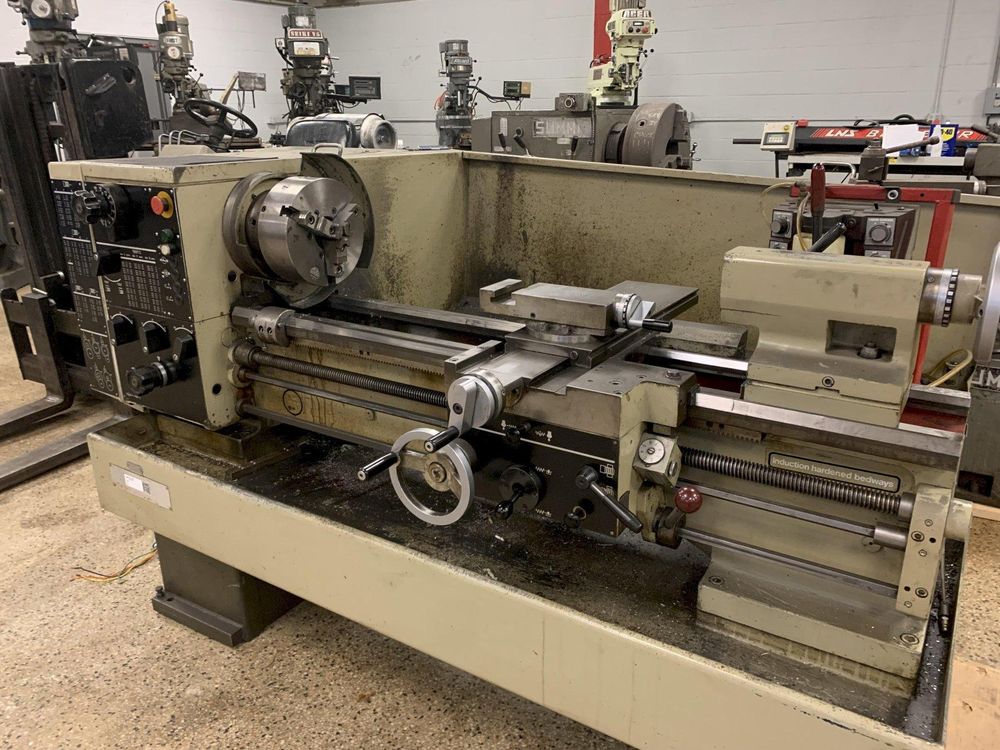

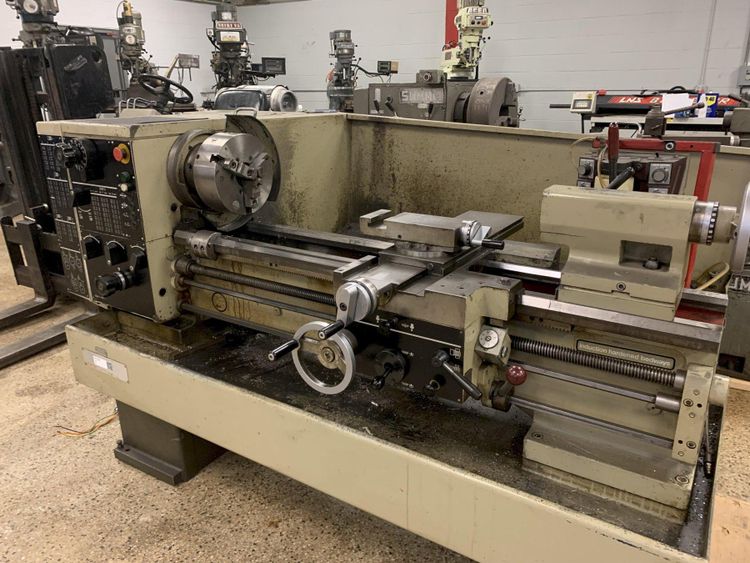

Harrison Engine Lathe 2200 rpm M350

Ref : 2738237-3-MT

Condition : Used

Manufacturer : Harrison

Type : Engine Lathe

Spindle Speed : 2200 rpm

Model : M350

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Center Height - 7.5"
Center Distance - 40"
Swing over Bed - 15"
Swing over Cross Slide - 9.5"
Swing in Gap - 23"
Spindle Hole - 2.125"
Spindle Nose - D1-6 Camlock
Spindle Speeds (12) - 40 to 2200 rpm
Threads (56) - 2 to 56 ipm
Long Feed Rates (31) - .0012 to .08 ipr
Cross Feed Rates - .0006 to .04 ipr
Tailstock Quill Diameter - 2.48"
Tailstock Quill Travel - 5.5"
Tailstock Quill Taper - 4 MT
Main Motor - 5 hp, 3/60/230v
Weight Approx - 2800 lbs
3-Jaw Chuck
4-Jaw Chuck
Quick Change Tool Post
