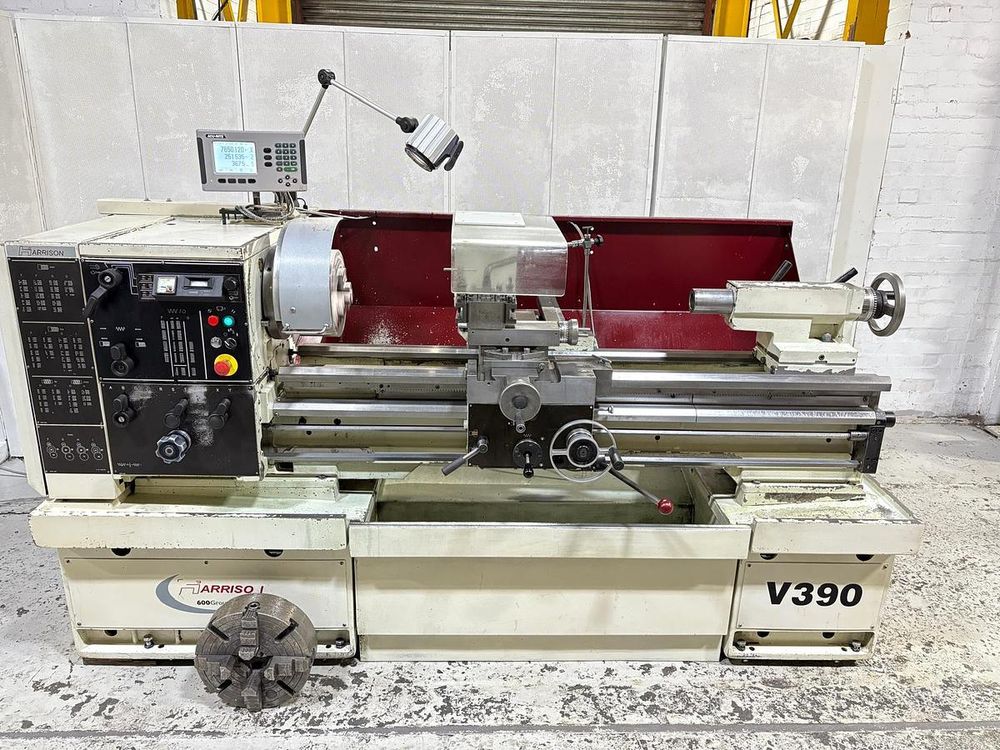

Harrison Engine Lathe 2500 RPM V390 x 1250 GAP BED CENTRE LATHE
Ref :
2794923-3-MT
Condition :
Used
Manufacturer :
Harrison
Type :
Engine Lathe
Spindle Speed :
2500 RPM
Model :
V390 x 1250 GAP BED CENTRE LATHE
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centres: 1250 mm
Swing over bed: 400 mm
Swing over cross slide: 246 mm
Swing in gap: 585 mm
Longitudinal feeds per revolution: 0.036 - 2.4 mm
Cross feeds: Half longitudinal
Whitworth threads: 2 - 72 TPI
Metric pitches: 0.2 - 14 mm
Module pitches: 0.2 - 3.5 MOD
Diametrical pitches: 8 - 56 D.P.
Spindle speeds: 14 - 2500 RPM
Spindle nose: 6" D1 Camlock
Spindle bore: 54 mm
Main motor: 7.5 kW
Tailstock spindle diameter: 73 mm
Tailstock spindle travel: 140 mm
Tailstock taper: No. 5 Morse
ACU-RITE D.R.O.
3 Jaw chuck
4 Jaw chuck
Guarding
Coolant
